45mm speaker EST45N-A hole mouting metal frame -ESUNTECH

Quantity:
  • EST45N-A

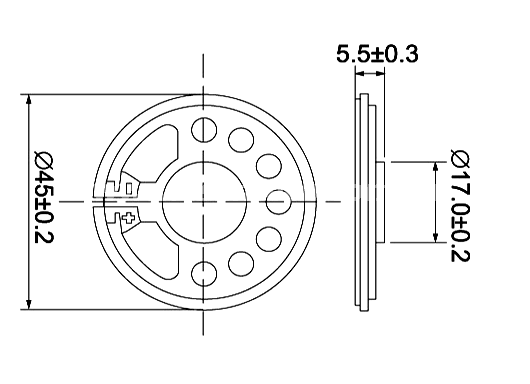

45mmx5.5mm mini speaker 4/8/16/32/64/120 ohm 300hz 1W 4550 4505  mylar cone waterproof speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,telephone,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2


Model No.

EST45N-A

Cone Material:

Mylay

Edge:

paper

Nominal Power:

0.8w

Maximum Power:

1.0w

Impedance:

4/8/16/32/64/120 ohm±15%

Fo:

300hz

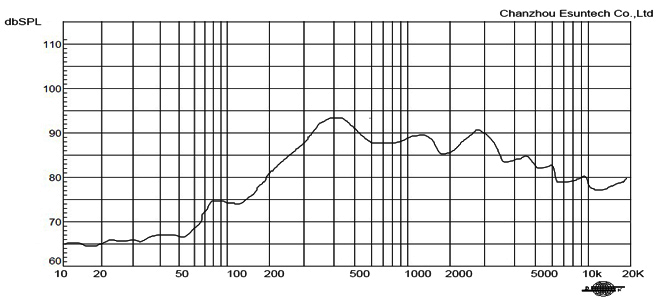

Response:

Fo-20kHz

S.P.L:

85±3dB/W/M

Magnet Size:

NdFeB

Rohs

Yes

3
