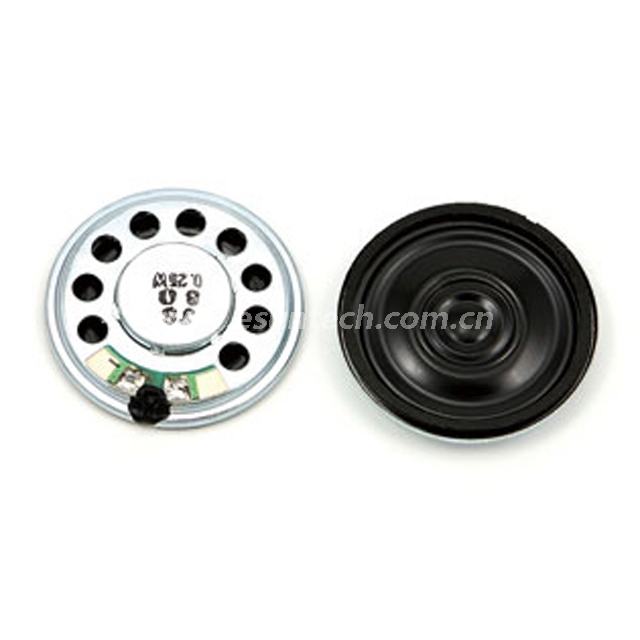

EST36N-A

Availability:
Quantity:
Inquire Add to Basket

Product Overview

4ohm 8ohm 32ohm mini mylar waterproof speaker



2



Technical Specifications

Model No. EST36N-A
Cone Material:  Mylay
Edge:
Nominal Power:  0.25w
Maximum Power:  0.5w
Impedance:  ohm±15%Ω
Voice coil:
Fo:  550hz
Response:  Fo-20kHz
S.P.L:   95±3dB/W/M

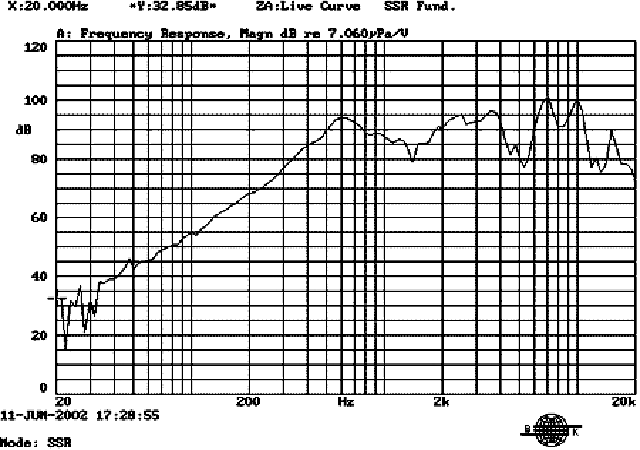

Frequency  Response Curve


3
