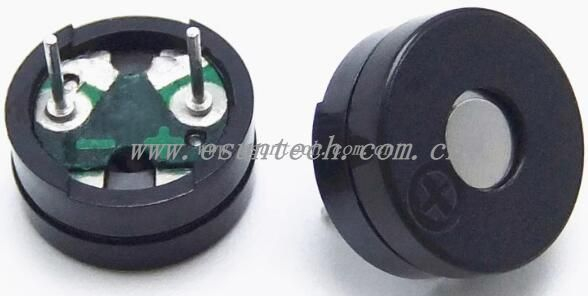

Electromagnetic buzzer EET1255 1.5V passive magnetic transducer -ESUNTECH

Quantity:
  • EET1255-1.5O-2.048-16-6.5-R

12mmx5.5mm 1.5V  16 OHM 2040hz 1255 passive electromagnetic transducer & buzzer square  buzzer Annunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model EET1255-1.5O-2.048-16-6.5-R
Rated Voltage (V) 1.5
Operating Voltage (V) 1~2
Resonant Frequency (Hz) 2048
Coil Resistance (Ω) 16±3
*Sound Output at 10cm (dB) ≥80
*Current Consumption (mA) ≤40
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -30~+80
Weight (g) 1.5
Housing Material PPO
ROHS Yes
