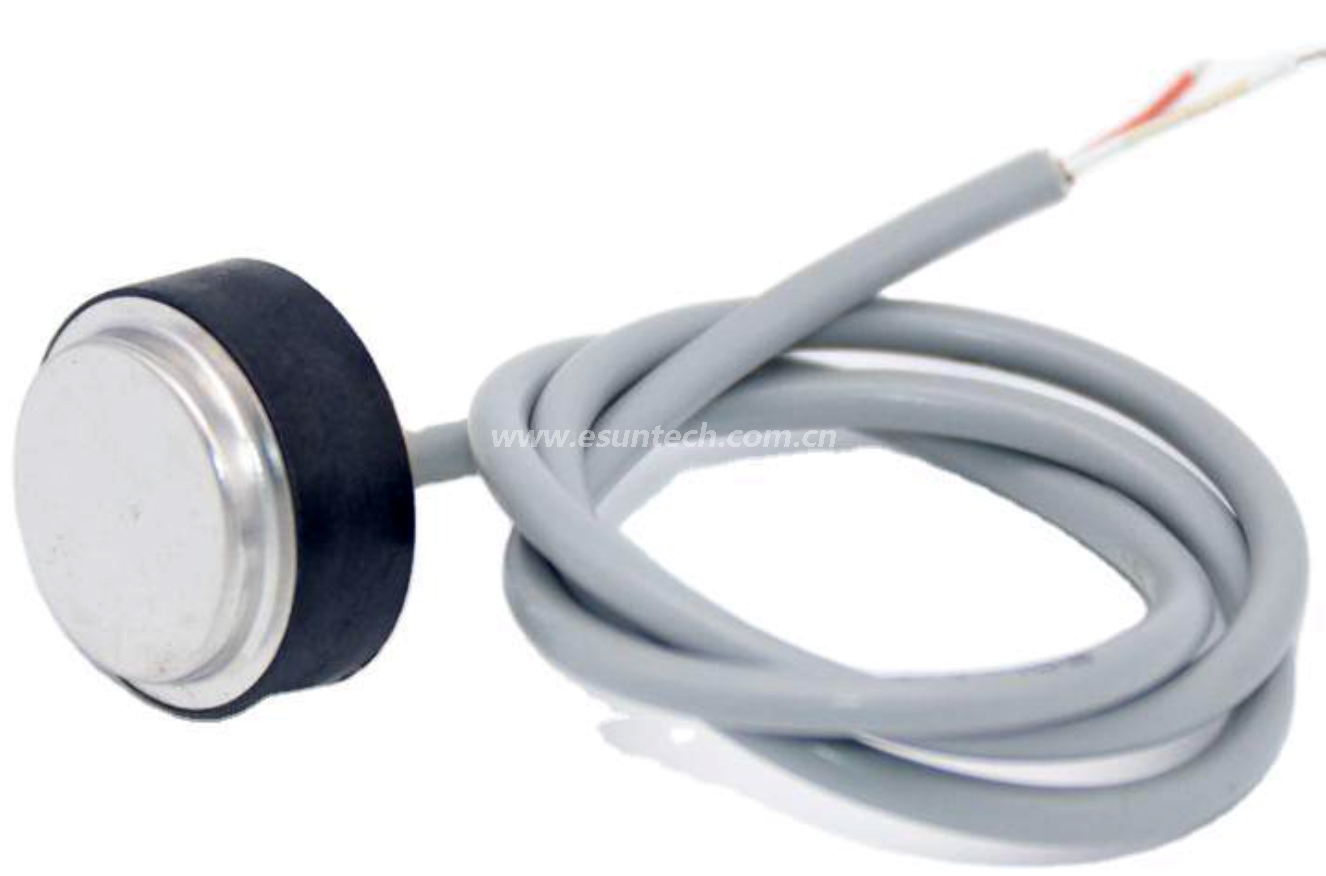

Flow meter ultrasonic sensor EUS-18B sealed 1MHZ 18mm sensor-ESUNTECH

Quantity:

Futures:

  • Compact and light weight

  • Wide angle High sensitivity and sound pressure level

  • High reliability

  • Excellent temperature and humidity durability

  • Low power consumption   Low cost

  • Waterproof and sealed

Application:

  • ·Distance meter

  • ·Automatic doors

  • ·Range finders

  • ·Burglar alarms

  • ·Remote control devices

  • .Flow meter

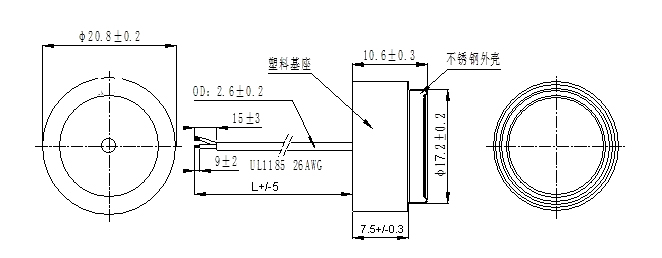

He51e5938518844d98a53d3d0f0d81d6fO (1)


Model No. EUS-18B
Using method  Dual use
Thick Resonant frequency 980KHZ±5%
Min. Parallel Resistance  110Ω±30%
Capacitance 1350Pf±20%
Max. Input Voltage (Pulse)   300Vp-p
Distance of Detection   0.1~3M
Pressure Resistance 1.5MPa
Launch beam Angle 5°-10°
Receiving sensitivity >300mv
Case material Polymer materials + stainless steel cap
Emission surface dimensions φ17mm
Installation surface dimensions Φ21mm
Wire length
Protection grade IP68
Operating temperature   -40°C~+80°C

All specification taken typical at 25°C



33



Precautions:

·Sensors are precision instrument, please don't scratch the surface.

·Ultrasonic sensors have potential direction; please pay attention to the installation location.


A. In strong shock or vibration.

B. In high temperature and humidity for a long time.

C. In corrosive gases or sea breeze.

D. In an atmosphere of organic solvents.

E. In a vacuum zone or hazardous areas.

F. In dirty and dusty environments that may contaminate the sensor front.
