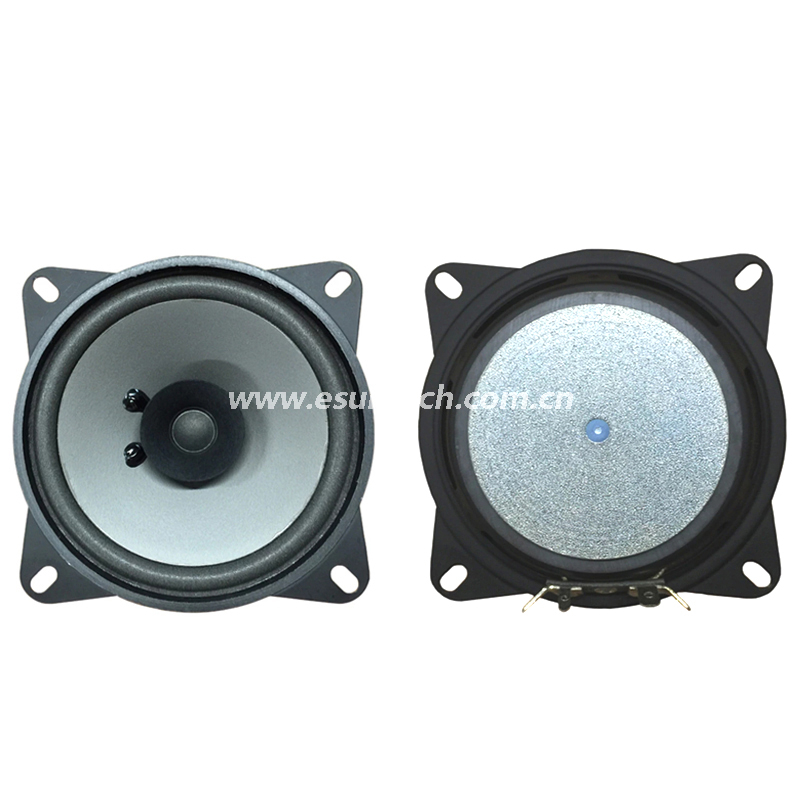

Loudspeaker 101mm YD101-01-4F60P-R Min Full Range car Speaker Drivers-ESUNTECH

  • YD101-01-4F60P-R
  • EST
Quantity:

Loudspeaker 101mm YD101-01-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd






Model YD101-01-4F60P-R

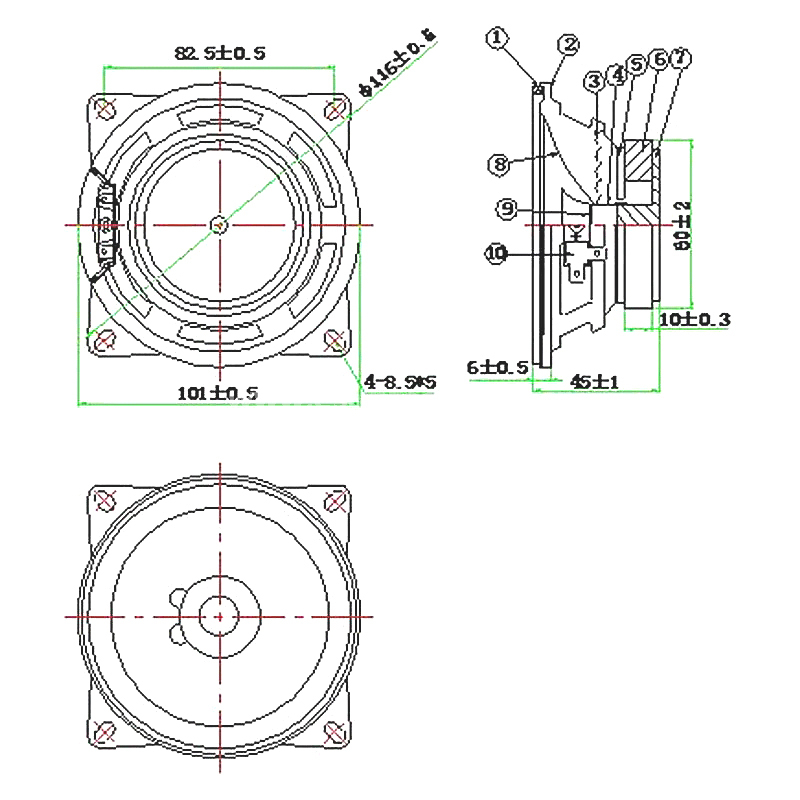

Dimension: 101*45H mm
Cone Material: PP
Edge: Foam
Nominal Power: 20W
Maximum Power: 21W
Impedance: 4±15%Ω
Voice coil: Φ14.28 mm ASV+Cu
Fo: 120±20%Hz

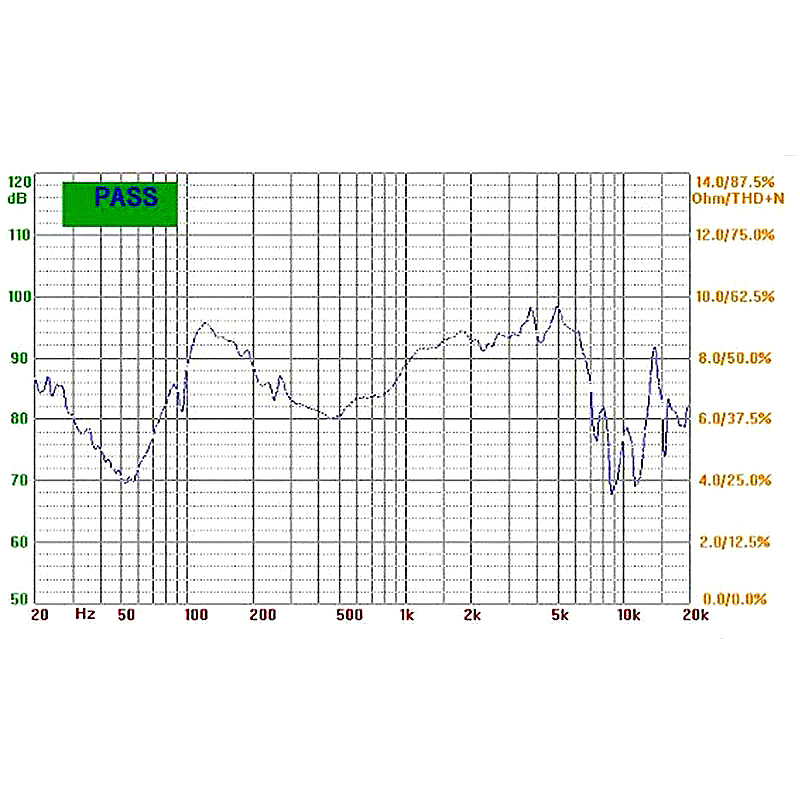

Response: Fo~15KHZ
S.P.L: 85±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size: Φ60*32*10mm
Net weight: 243g±8%
