Loudspeaker 102mm YD102-09-4F60P-R Min Full Range car Speaker Drivers-ESUNTECH

  • YD102-09-4F60P-R
  • EST
Quantity:

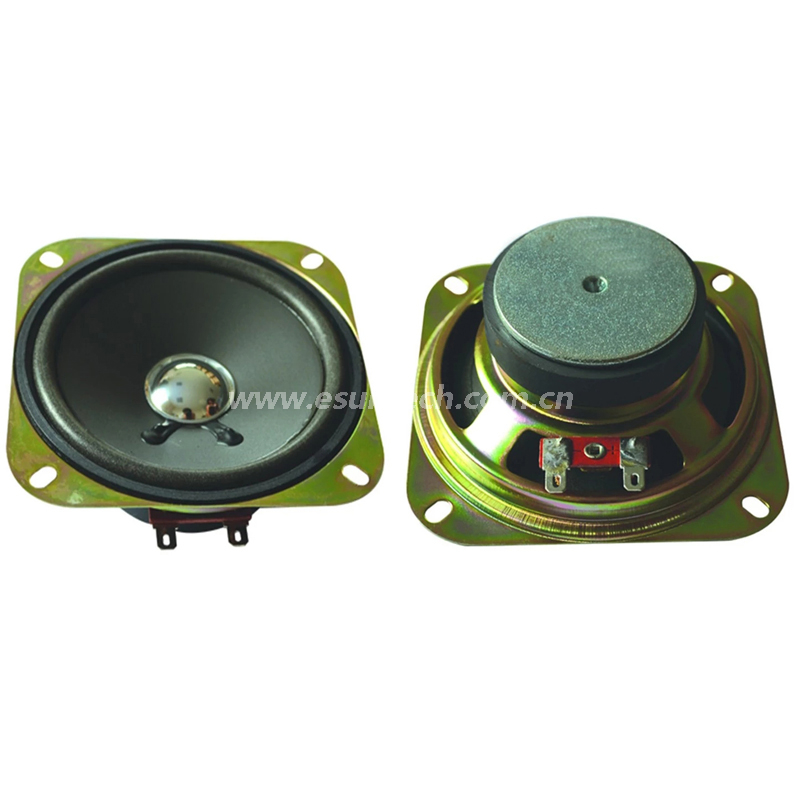

Loudspeaker 102mm YD102-09-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd






Model YD102-09-4F60P-R

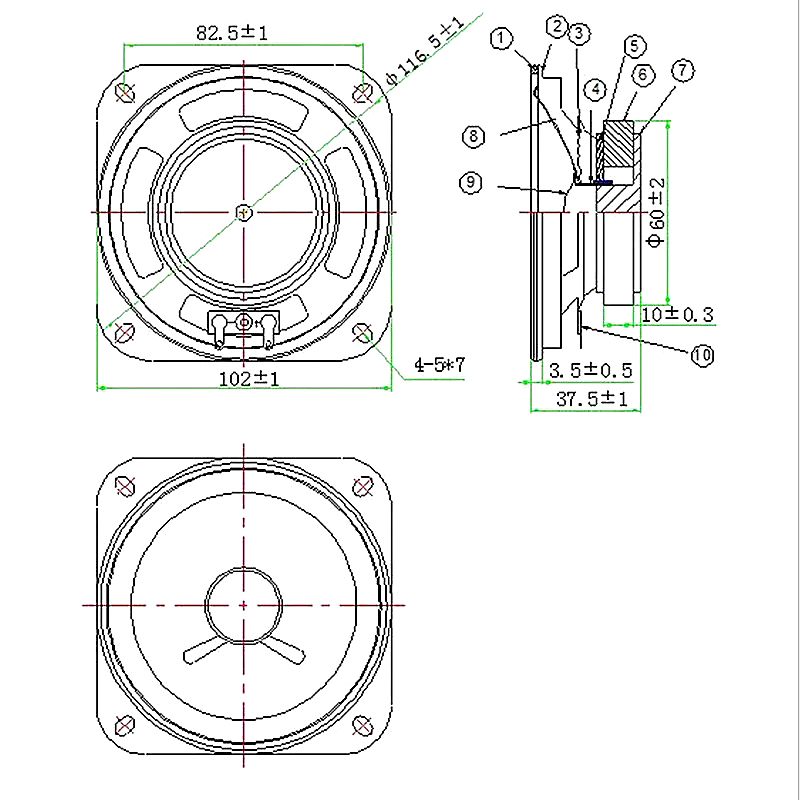

Dimension: 102*102*37.5H mm
Cone Material: PP
Edge: Foam
Nominal Power: 25W
Maximum Power: 30W
Impedance: 4±15%Ω
Voice coil: Φ19.45mm ASV+Cu
Fo: 100±20%Hz

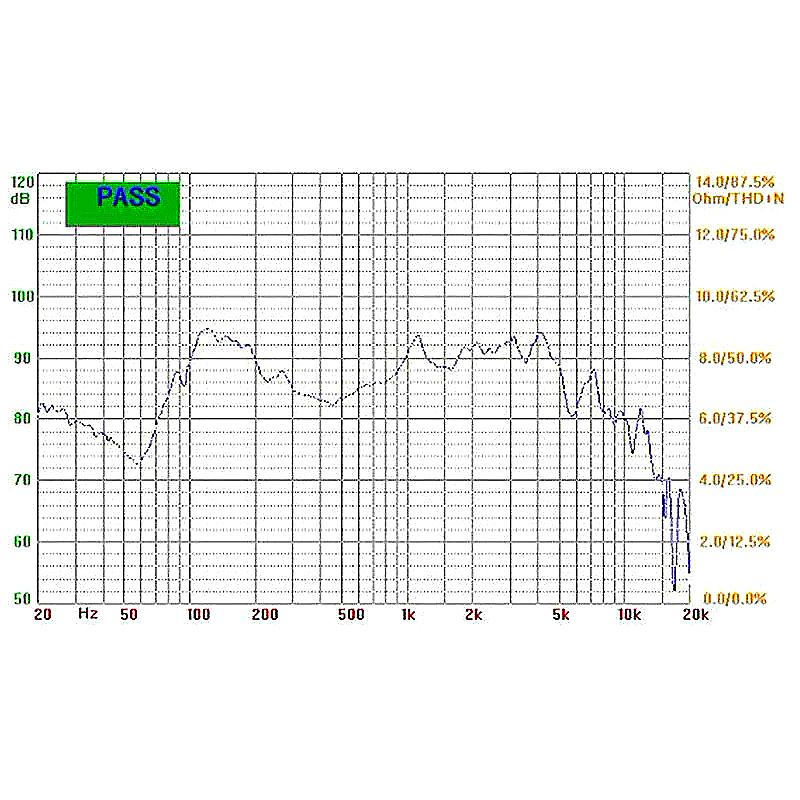

Response: Fo~10KHZ
S.P.L: 86±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size: Φ60*32*10mm
Net weight: 250g±8%
