Loudspeaker 102mm YD102-20-4F60P-R Min Full Range car Speaker Drivers-ESUNTECH

Quantity:
  • YD102-20-4F60P-R
  • EST

Loudspeaker 102mm YD102-20-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd







Model YD102-20-4F60P-R

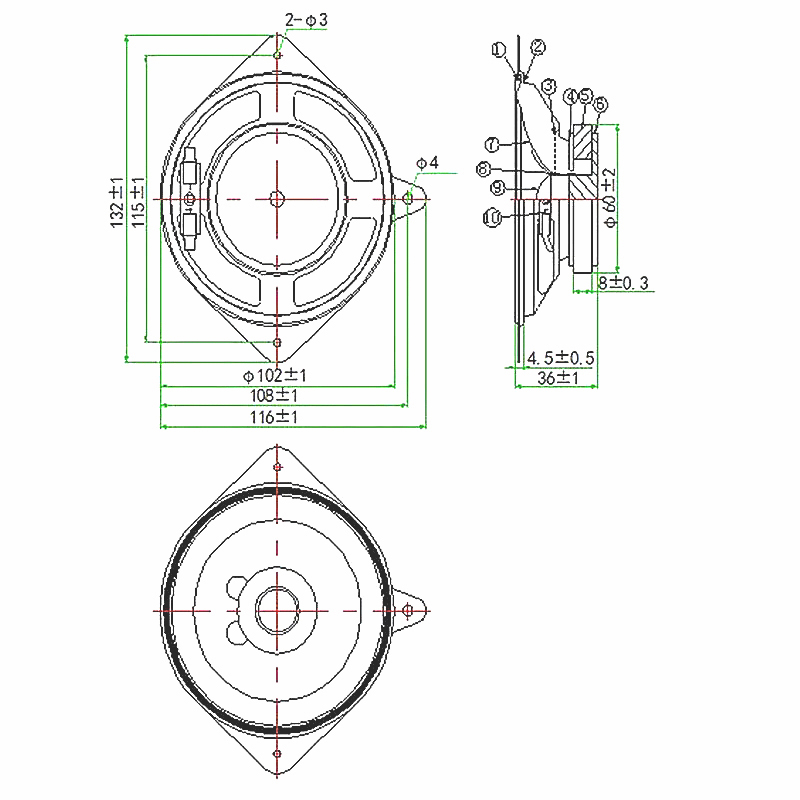

Dimension: Φ102*36H mm
Cone Material: PP
Edge: Rubber
Nominal Power: 15W
Maximum Power: 20W
Impedance: 4±15%Ω
Voice coil: Φ19.45mm ASV+Cu
Fo: 110±20%Hz

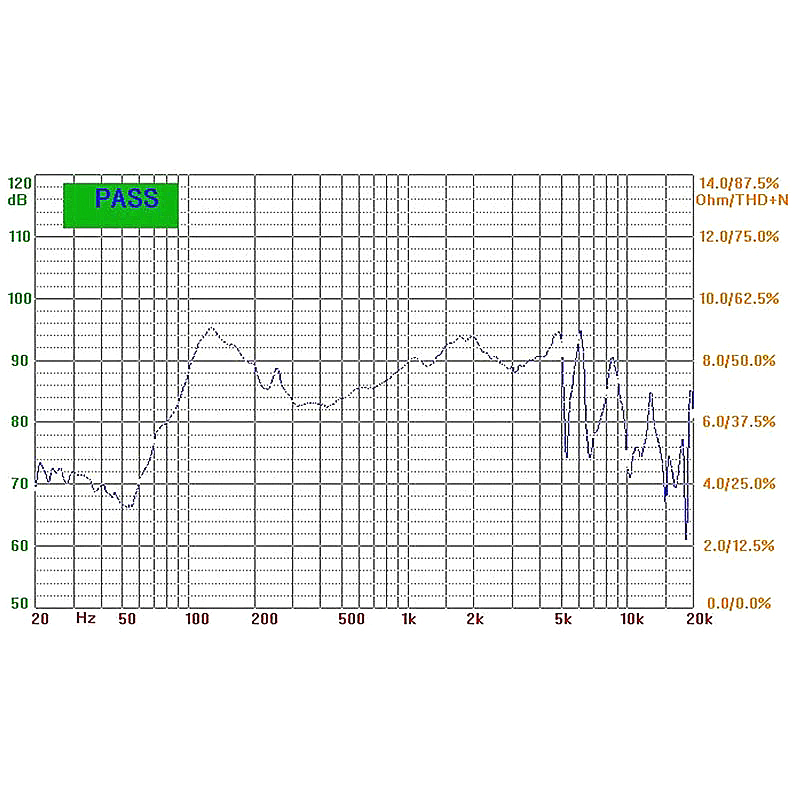

Response: Fo~10KHZ
S.P.L: 88±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size: Φ60*32*8mm
Net weight: 225g±8%
