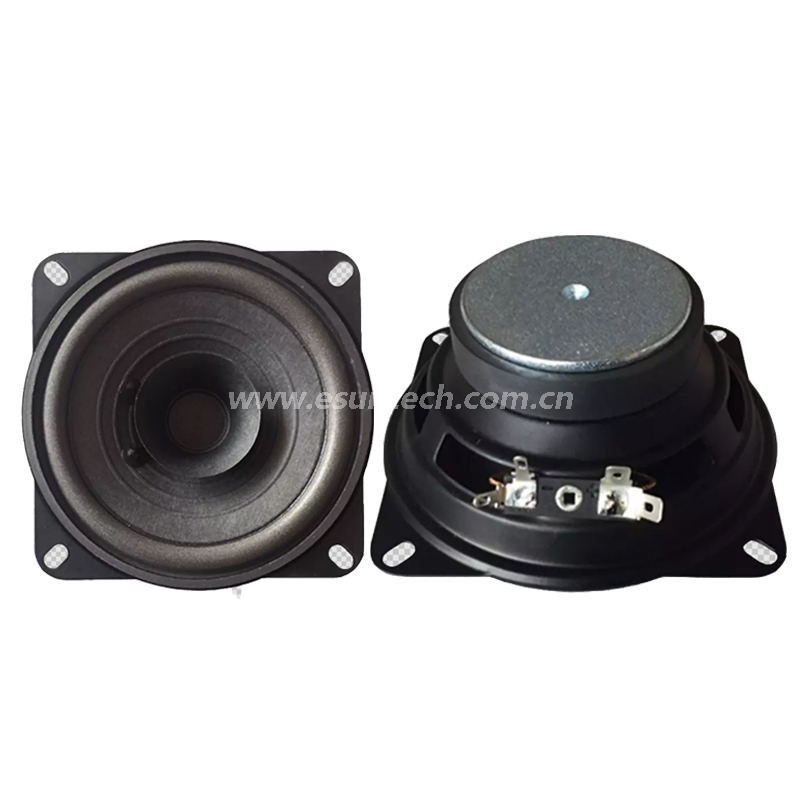

Loudspeaker 102mm YD102-21-4F70P-R Min Full Range car Speaker Drivers-ESUNTECH

Quantity:
  • YD102-21-4F70P-R
  • EST

Loudspeaker 102mm YD102-21-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





Model YD102-21-4F70P-R

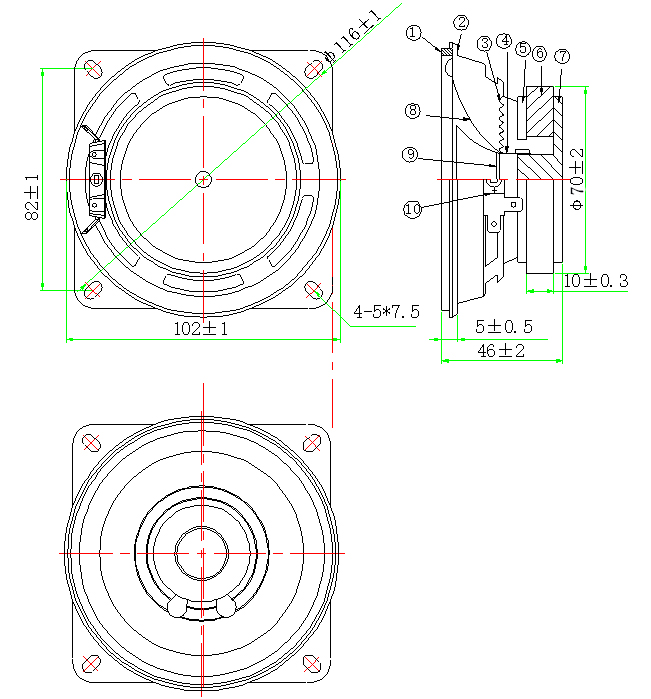

Dimension: 102*102*46H mm
Cone Material: Paper
Edge: Foam
Nominal Power: 20W
Maximum Power: 30W
Impedance: 4±15%Ω
Voice coil: Φ19.45mm  ASV+Cu
Fo: 120±20%Hz

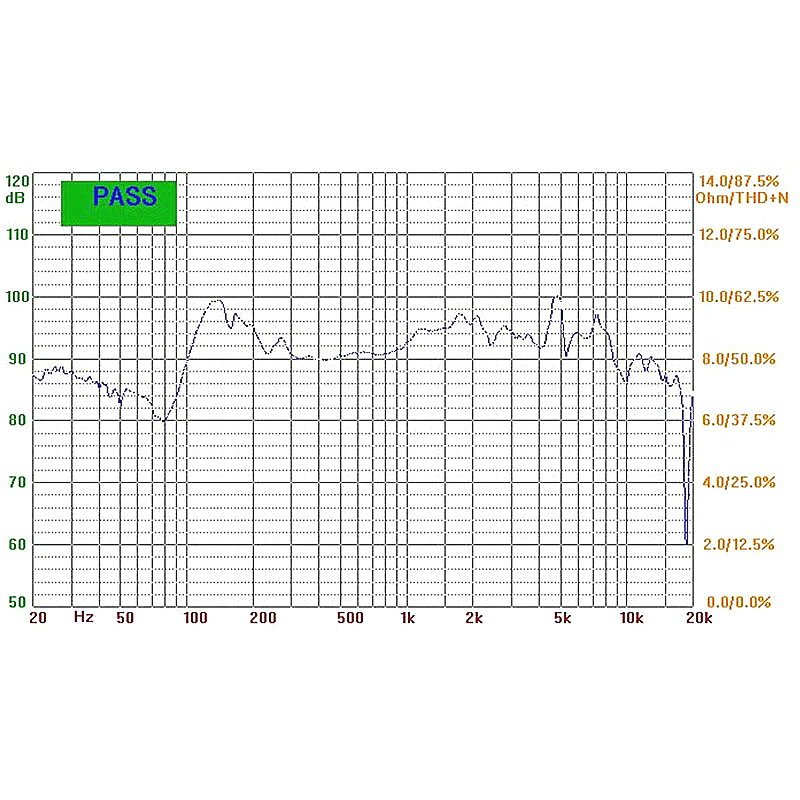

Response: Fo~18KHZ
S.P.L: 92±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size: Φ70*32*10mm
Net weight: 370g±8%
