Loudspeaker 102mm YD102-26-8F70P-R Min Full Range Multimedia Speaker Drivers-ESUNTECH

Quantity:
  • YD102-26-8F70P-R
  • EST

Loudspeaker 102mm YD102-26-8F70P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd


Model YD102-26-8F70P-R

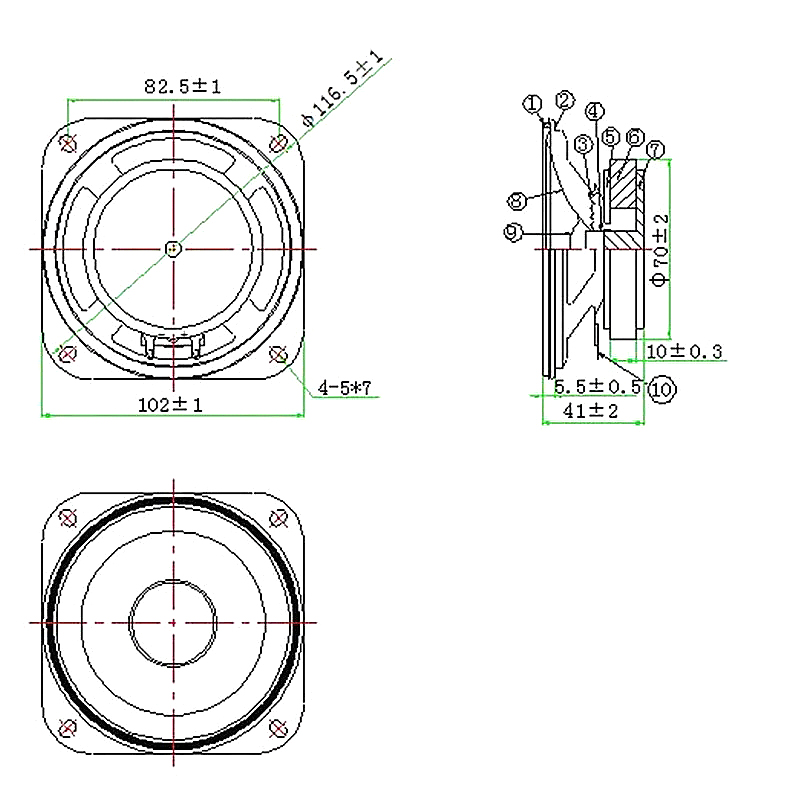

Dimension: 102*102*41H mm
Cone Material: Paper
Edge: Rubber
Nominal Power: 25W
Maximum Power: 30W
Impedance: 8±15%Ω
Voice coil: Φ19.45mm ASV+Cu
Fo: 120±20%Hz

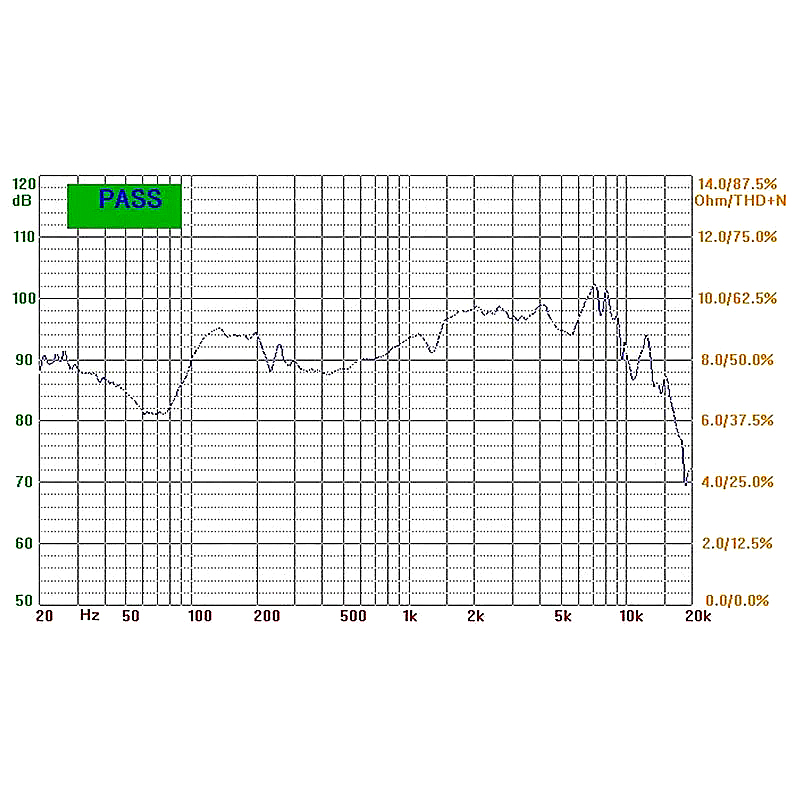

Response: Fo~15KHZ
S.P.L: 92±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size: Φ70*32*10mm
Net weight: 374g±8%
