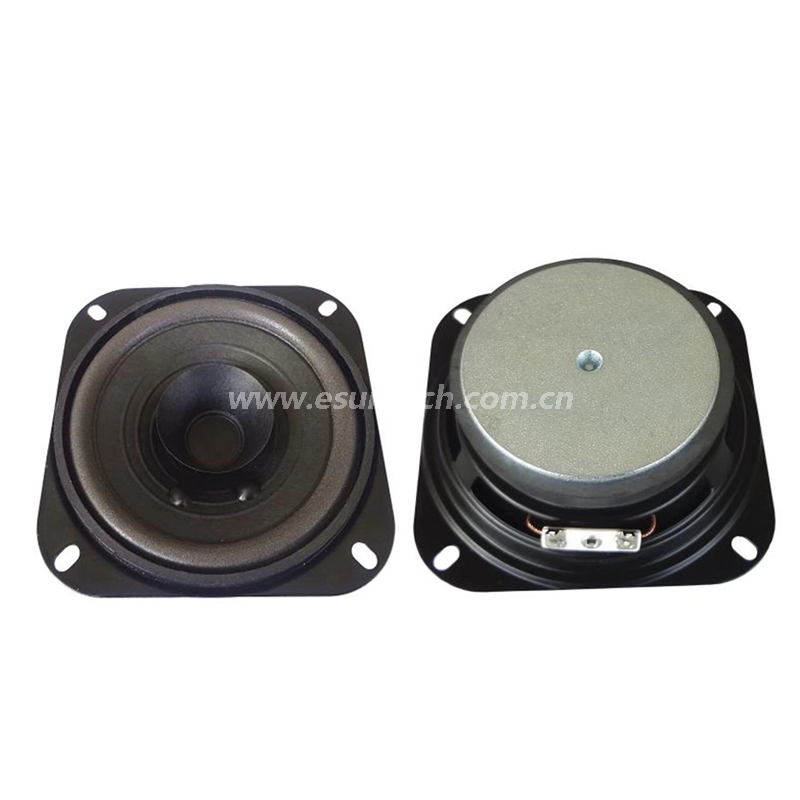

Loudspeaker 102mm YD102-29-4F70P-R Min Full Range Equipment Speaker Drivers-ESUNTECH

Quantity:
  • YD102-29-4F70P-R
  • EST

Loudspeaker 102mm YD102-29-4F70P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd







Model YD102-29-4F70P-R
Dimension: 102*102*47.5H mm
Cone Material: Paper
Edge: Foam
Nominal Power: 25W
Maximum Power: 26W
Impedance: 4Ω±15%Ω
Voice coil: Φ19.45mm ASV+Cu
Fo: 110±20%

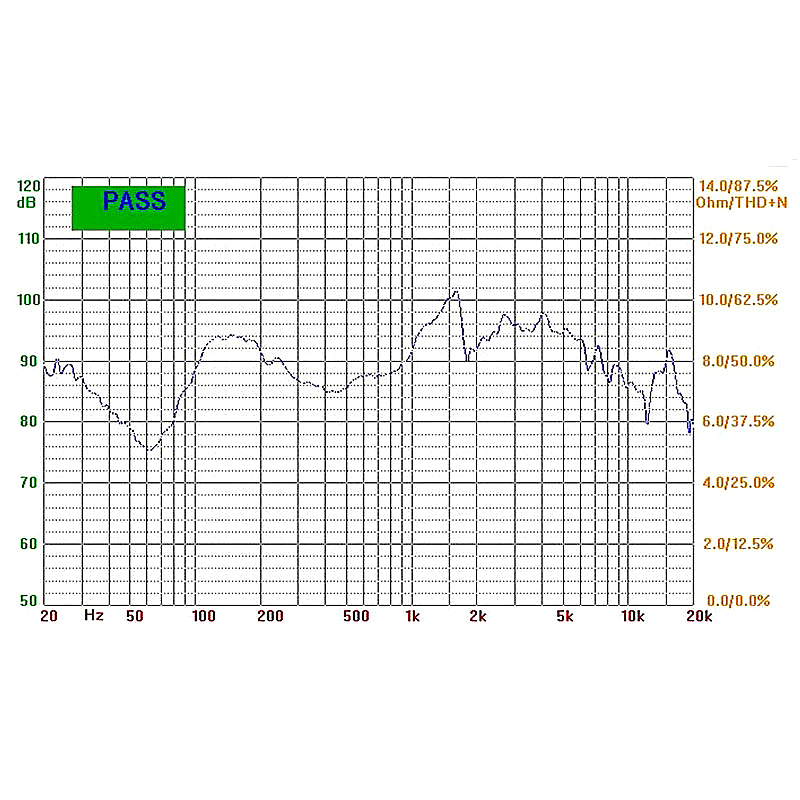

Response: Fo~15KHZ
S.P.L: 91±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ70*32*10mm
Net weight: 380g±8%
