Loudspeaker 104mm YD104-01-6F70P-R Min Full Range Multimedia Speaker Drivers-ESUNTECH

  • YD104-01-6F70P-R
  • EST

Loudspeaker 104mm YD104-01-6F70P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd




Model YD104-01-6F70P-R

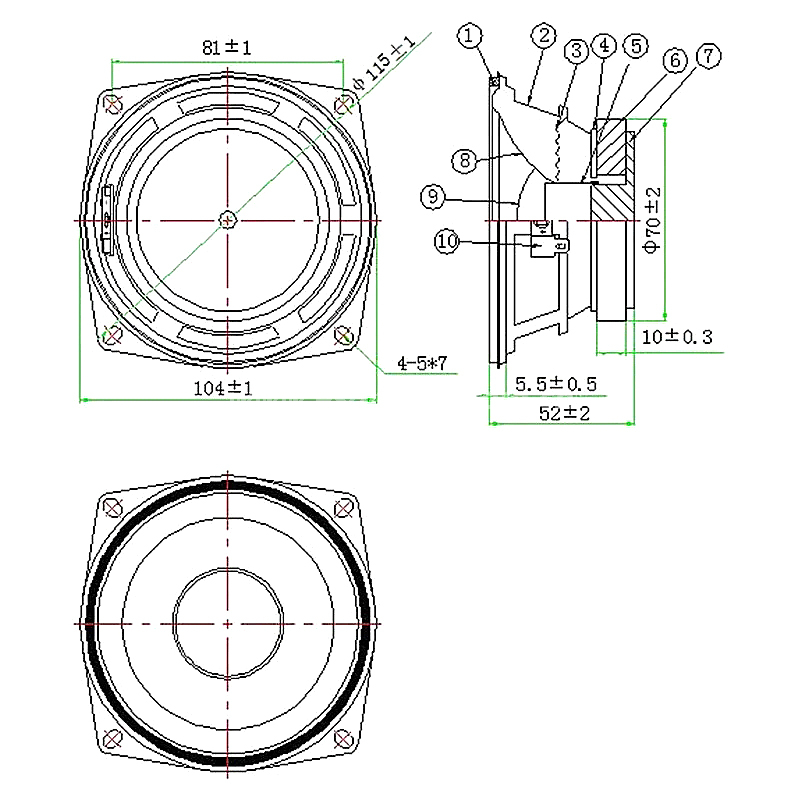

Dimension: 104*104*52H mm
Cone Material: Paper
Edge: Rubber
Nominal Power: 20W
Maximum Power: 25W
Impedance: 6±15%Ω
Voice coil: Φ25.5mm ASV+Cu
Fo: 100±20%Hz
Response: Fo~10KHZ
S.P.L: 91±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size: Φ70*32*10mm
Net weight: 385g±8%
