Loudspeaker 116mm YD116-01-4F70P-R Min Full Range Woofer Speaker Drivers-ESUNTECH

Quantity:
  • YD116-01-4F70P-R
  • EST

Loudspeaker 116mm YD116-01-4F70P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd




Model YD116-01-4F70P-R

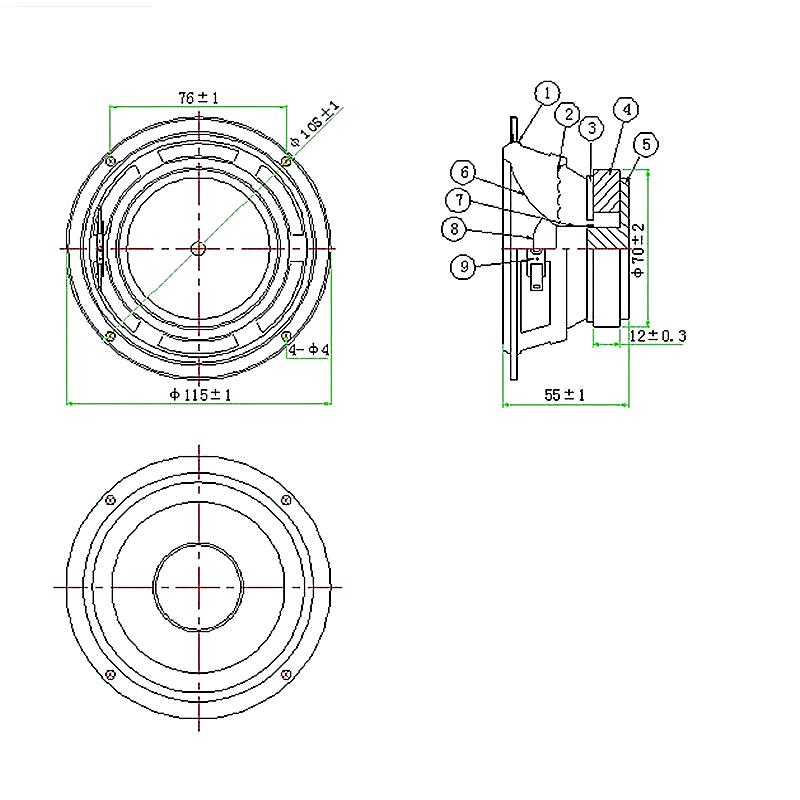

Dimension: Φ116*55H mm
Cone Material: Paper
Edge: Rubber
Nominal Power: 15W
Maximum Power: 20W
Impedance: 4Ω±15%Ω
Voice coil: Φ19.45mm ASV+Cu
Fo: 100±20%
Response: Fo~10KHZ
S.P.L: 92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ70*32*12mm
Net weight: 400g±8%
