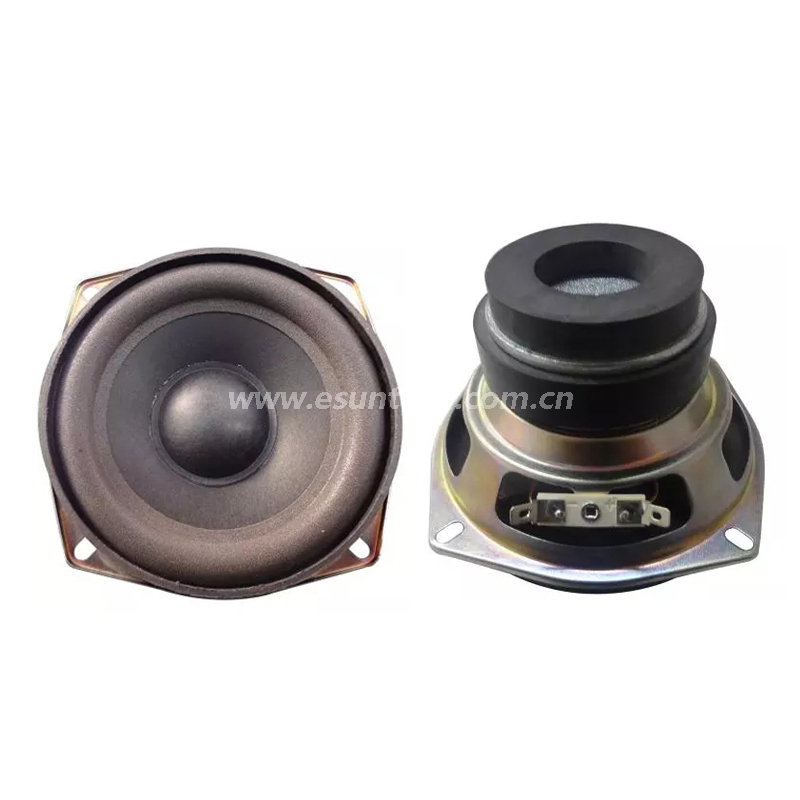

Loudspeaker 118mm YD118-01-5F70P-R Min Full Range car Speaker Drivers-ESUNTECH

Quantity:
  • YD118-01-5F70P-R
  • EST

Loudspeaker 118mm YD118-01-5F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd






Model YD118-01-5F70P-R
Dimension: 118*118*70H mm
Cone Material: Paper
Edge: Foam
Nominal Power: 20W
Maximum Power: 25W
Impedance: 5±15%Ω
Voice coil: Φ25.5mm ASV+Cu
Fo: 85±20%Hz

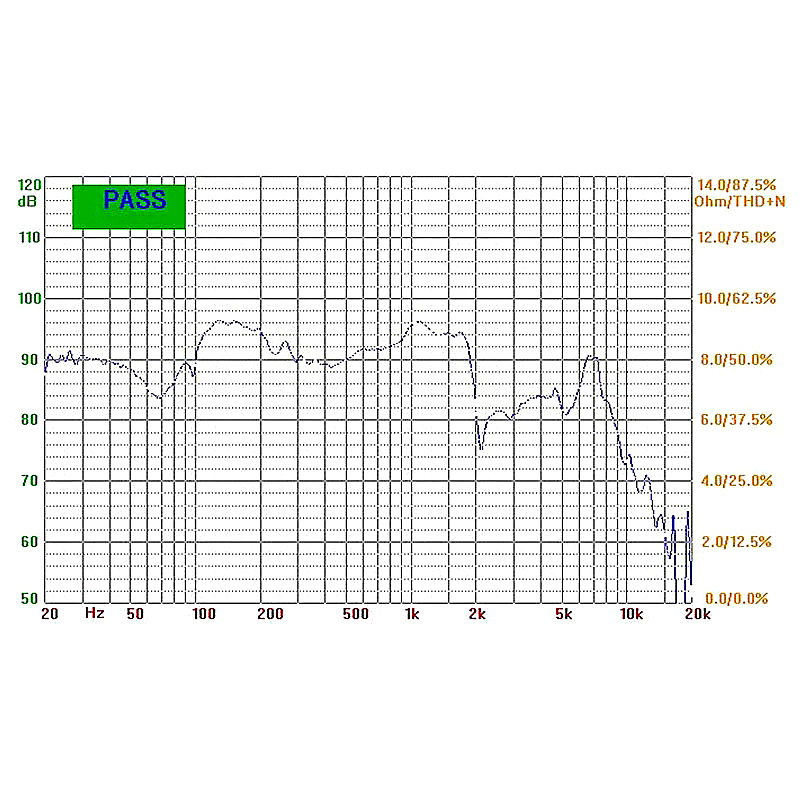

Response: Fo~2KHZ
S.P.L: 92±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size: Φ70*32*15mm+60*32*10mm
Net weight: 600g±8%
