Loudspeaker 120mm YD120-32-8F60P-R Min Full Range car Speaker Drivers-ESUNTECH

Quantity:
  • YD120-32-8F60P-R
  • EST

Loudspeaker 120mm YD120-32-8F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd




Model YD120-32-8F60P-R
Dimension: 120*120*41H mm
Cone Material: Paper
Edge: Foam
Nominal Power: 10W
Maximum Power: 12W
Impedance: 8±15%Ω
Voice coil: Φ14.28 ASV+Cu
Fo: 110±20%Hz

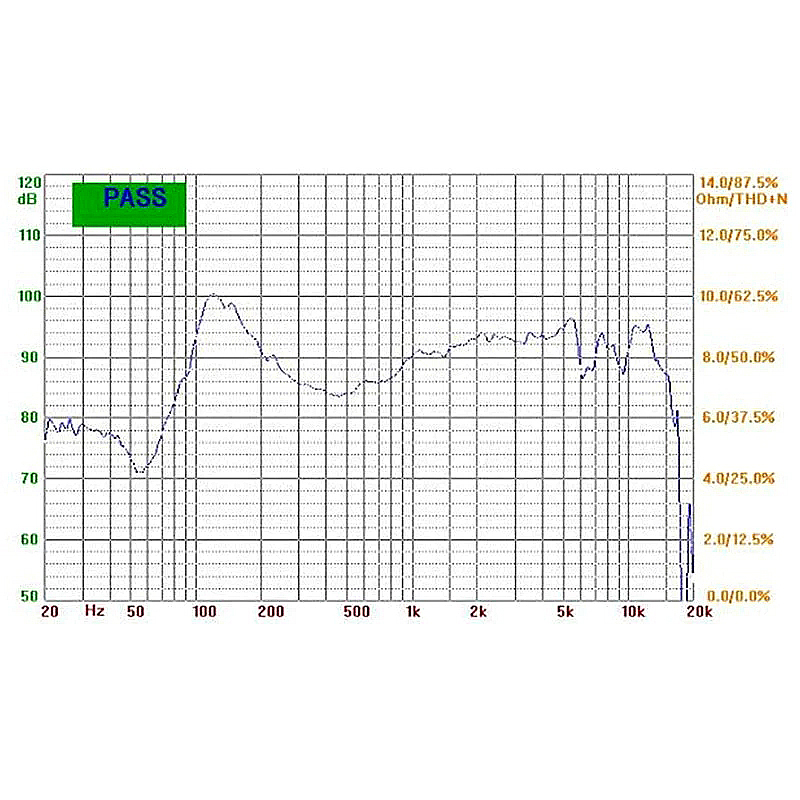

Response: Fo~15KHZ
S.P.L: 88±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size: Φ60*32*8mm
Net weight: 196g±8%
