Loudspeaker 129mm YD129-02-8F80P-R Min Full Range car Speaker Drivers-ESUNTECH

Quantity:
  • YD129-02-8F80P-R
  • EST

Loudspeaker 129mm YD129-02-8F80P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd






Model YD129-02-8F80P-R
Dimension: Φ129*63H mm
Cone Material: Injection
Edge: Black plating
Nominal Power: 45W
Maximum Power: 90W
Impedance: 8±15%Ω
Voice coil: Φ25.5mm Aluminum+ Φ20mm NdFeB silk tweeter + division electric capacity
Fo: 85±20%Hz

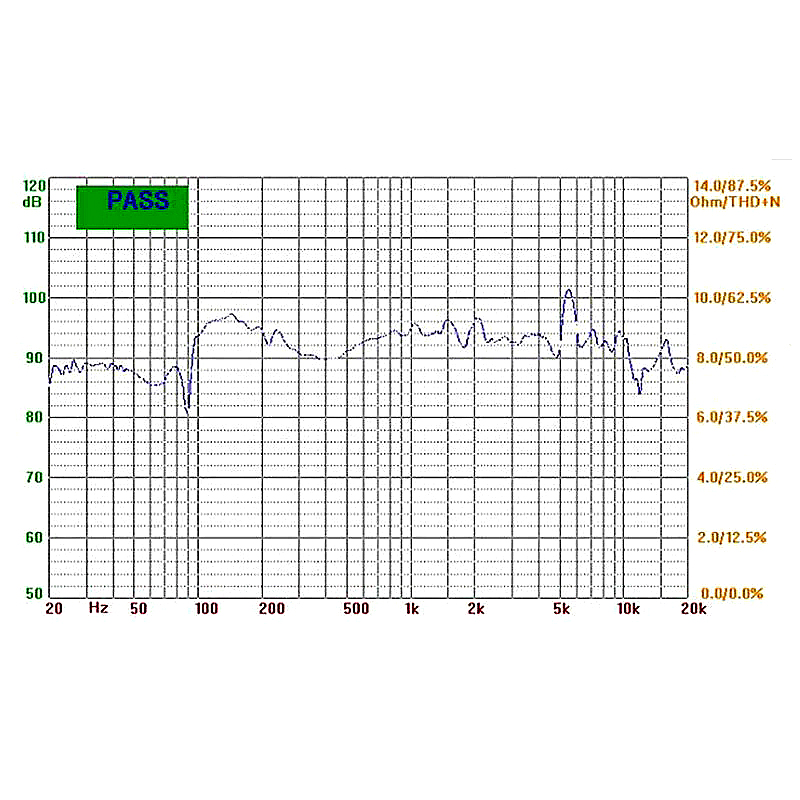

Response: Fo~20KHZ
S.P.L: 91±3dB(at0.1W/0.1m, 0.5, 0.8, 1, 2 KHZ)
Magnet Size: Φ80*32*15mm
Net weight: 720g±8%
