Loudspeaker 136mm YD136-01-8F80P-R Min Full Range Woofer Speaker Drivers-ESUNTECH

  • YD136-01-8F80P-R
  • EST
Quantity:

Loudspeaker 136mm YD136-01-8F80P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd




Model YD136-01-8F80P-R
Dimension: Φ136*56H mm
Cone Material: Paper
Edge: Foam
Nominal Power: 30W
Maximum Power: 50W
Impedance: 8Ω±15%Ω
Voice coil: Φ25.5 ASV+Cu
Fo: 85±20%

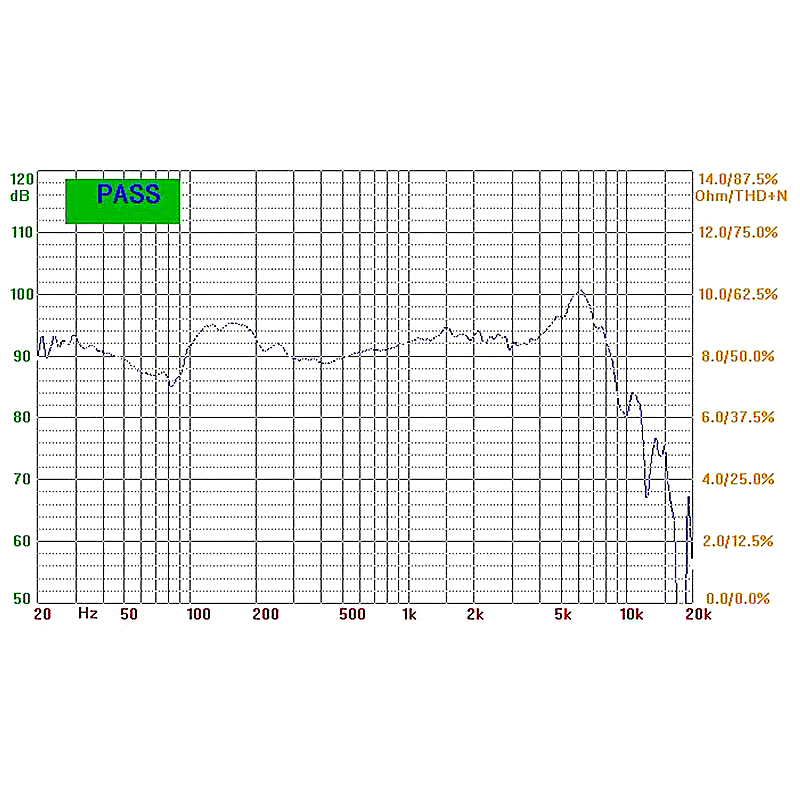

Response: Fo~8KHZ
S.P.L: 91±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ80*32*12 Hmm
Net weight: 600g±8%
