Loudspeaker 156mm YD156-01-8F70P-R Min Full Range car Speaker Drivers-ESUNTECH

Quantity:
  • YD156-01-8F70P-R
  • EST

Loudspeaker 156mm YD156-01-8F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





Model YD156-01-8F70P-R

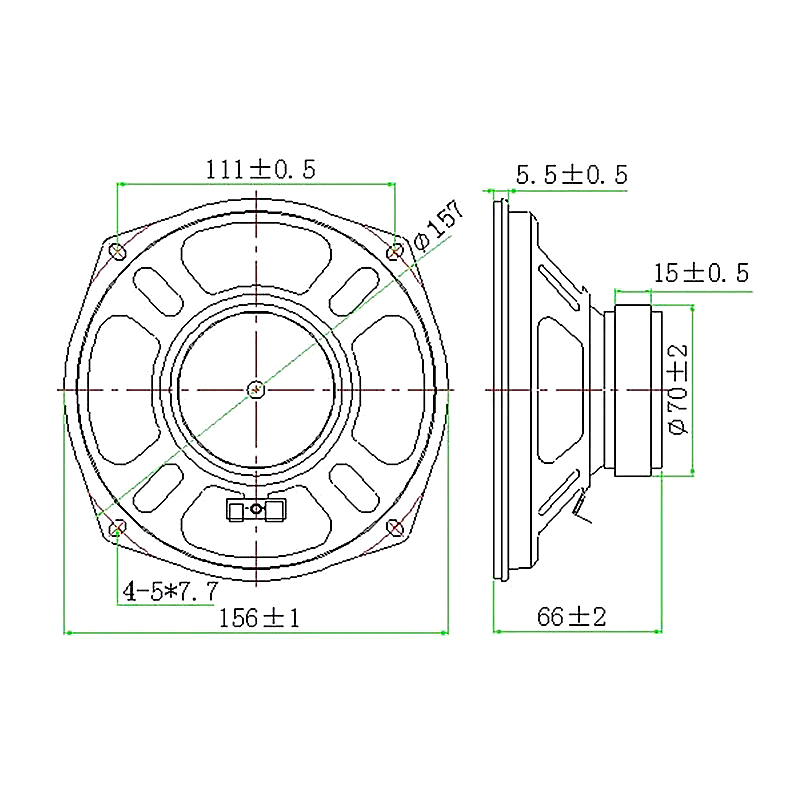

Dimension: 156*156*66H mm
Cone Material: Paper
Edge: Paper
Nominal Power: 30W
Maximum Power: 60W
Impedance: 8±15%Ω
Voice coil: Φ19.45mm ASV+Cu
Fo: 145±20%Hz
Response: Fo~17KHZ
S.P.L: 93±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size: Φ70*32*15mm
Net weight: 545g±8%
