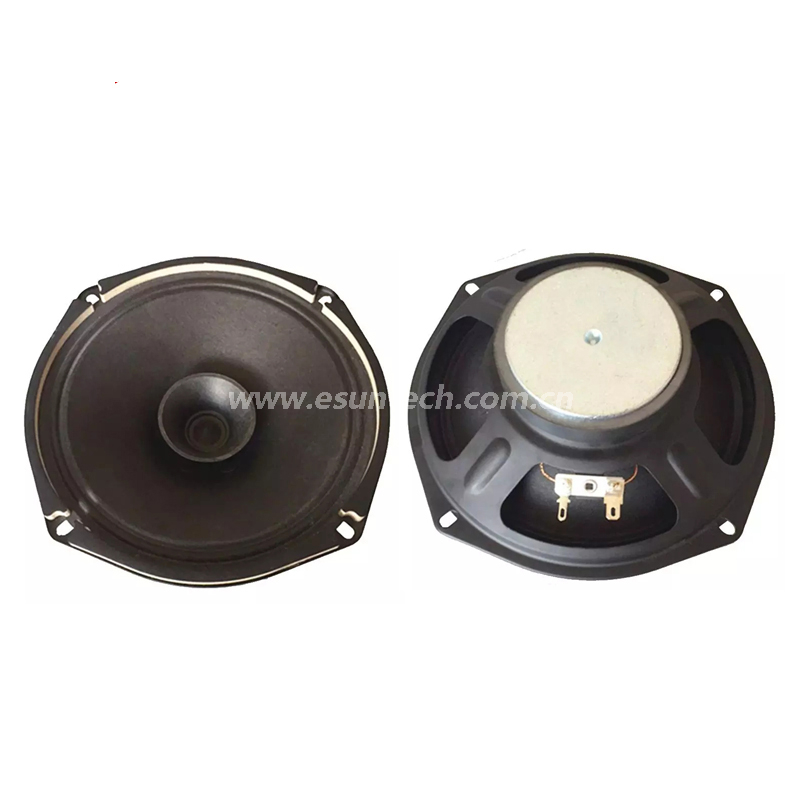

Loudspeaker 158mm YD158-02-4F70P-R Min Full Range car Speaker Drivers-ESUNTECH

Quantity:
  • YD158-02-4F70P-R
  • EST

Loudspeaker 158mm YD158-02-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd




Model YD158-02-4F70P-R

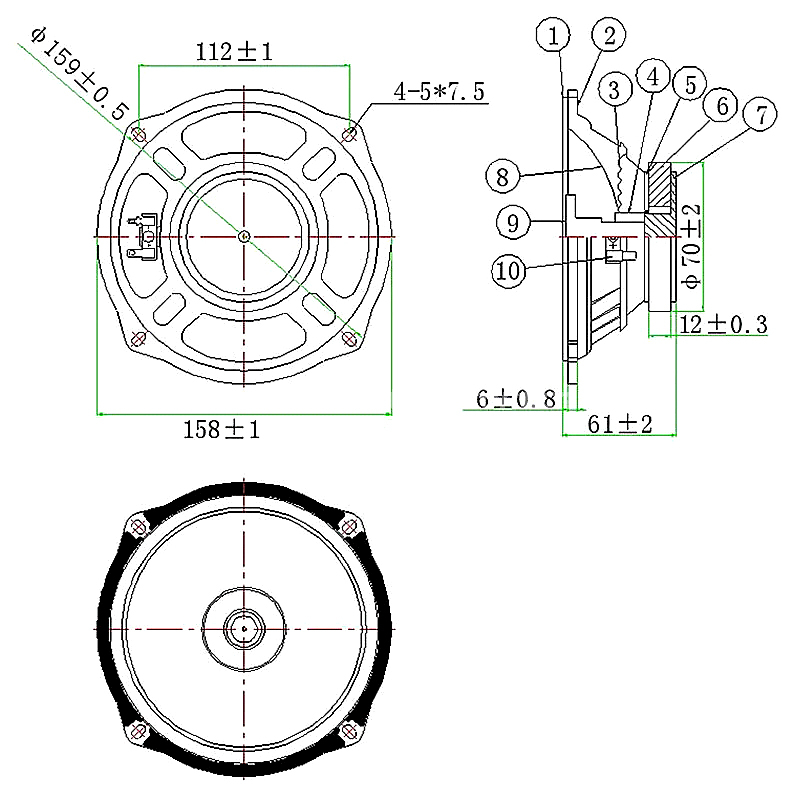

Dimension: 158*158*61H mm
Cone Material: Paper
Edge: Paper
Nominal Power: 30W
Maximum Power: 60W
Impedance: 4±15%Ω
Voice coil: Φ19.45 ASV+Cu
Fo: 150±20%Hz

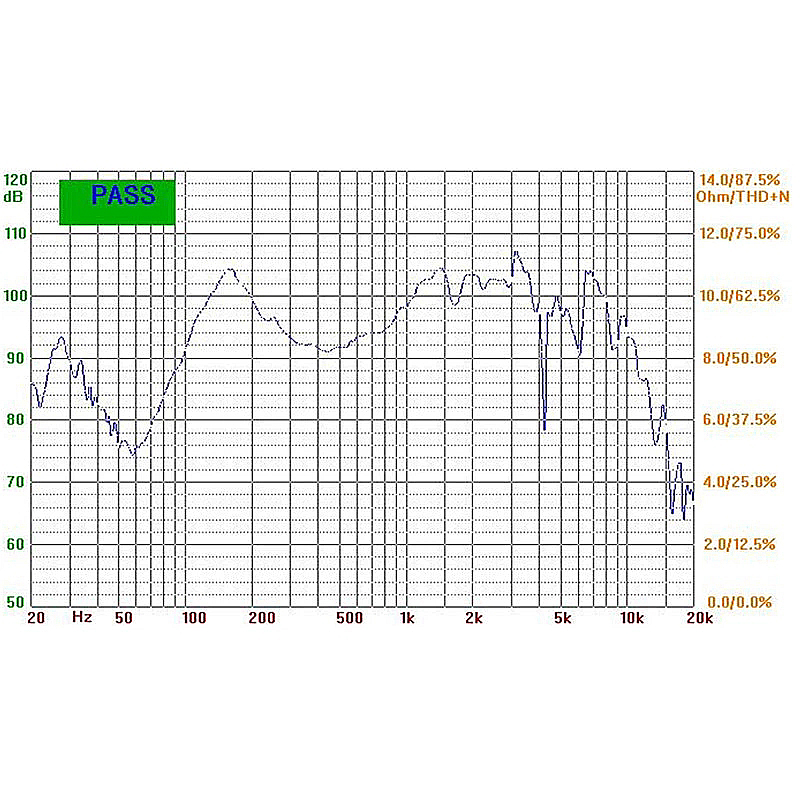

Response: Fo~8KHZ
S.P.L: 96±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size: Φ70*32*12mm
Net weight: 442g±8%
