Loudspeaker 158mm YD158-100F-8F75P-R Min Full Range car Speaker Drivers-ESUNTECH

Quantity:
  • YD158-100F-8F75P-R
  • EST

Loudspeaker 158mm YD158-100F-8F75P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd







Model YD158-100F-8F75P-R

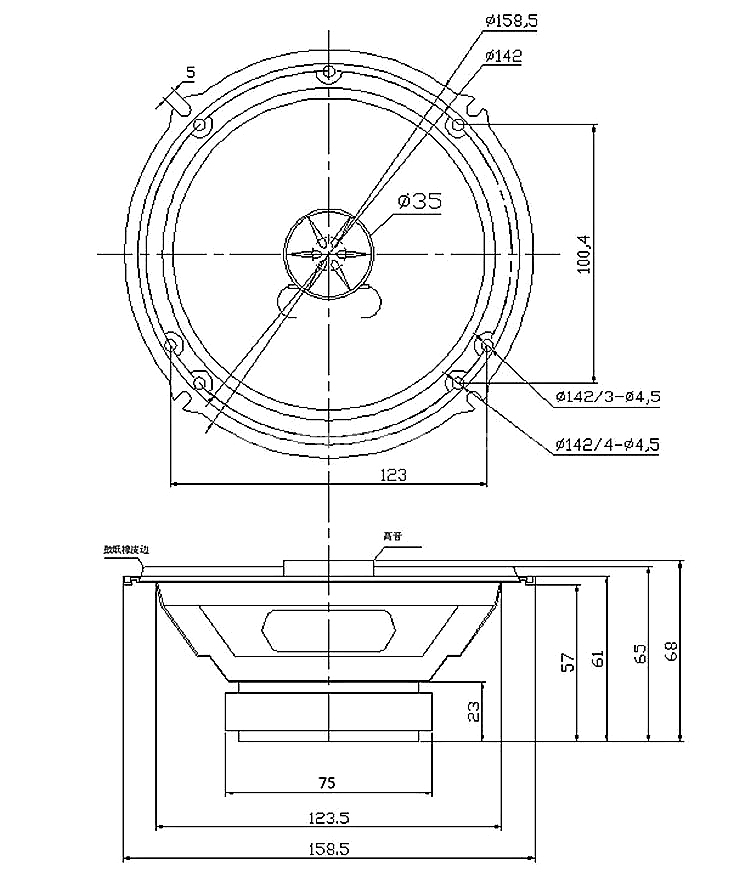

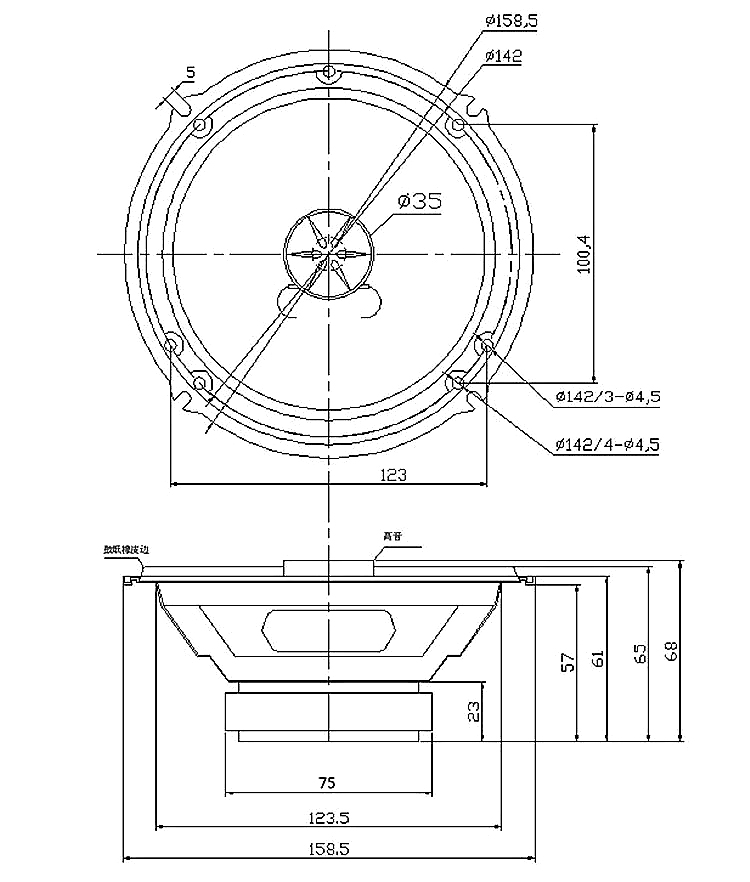

Dimension: Φ158*68H mm
Cone Material: PP
Edge: Rubber
Nominal Power: 20W
Maximum Power: 30W
Impedance: 8±15%Ω
Voice coil: Φ25.5mm Aluminum
Fo: 75±20%Hz

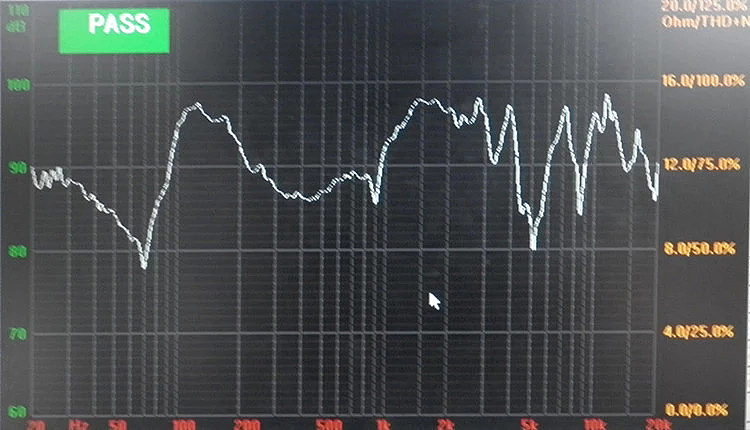

Response: Fo~20KHZ
S.P.L: 90±3dB(at0.1W/0.1m, 0.5, 0.8, 1, 2 KHZ)
Magnet Size: Φ75*40*12mm
Net weight: 693g±8%
