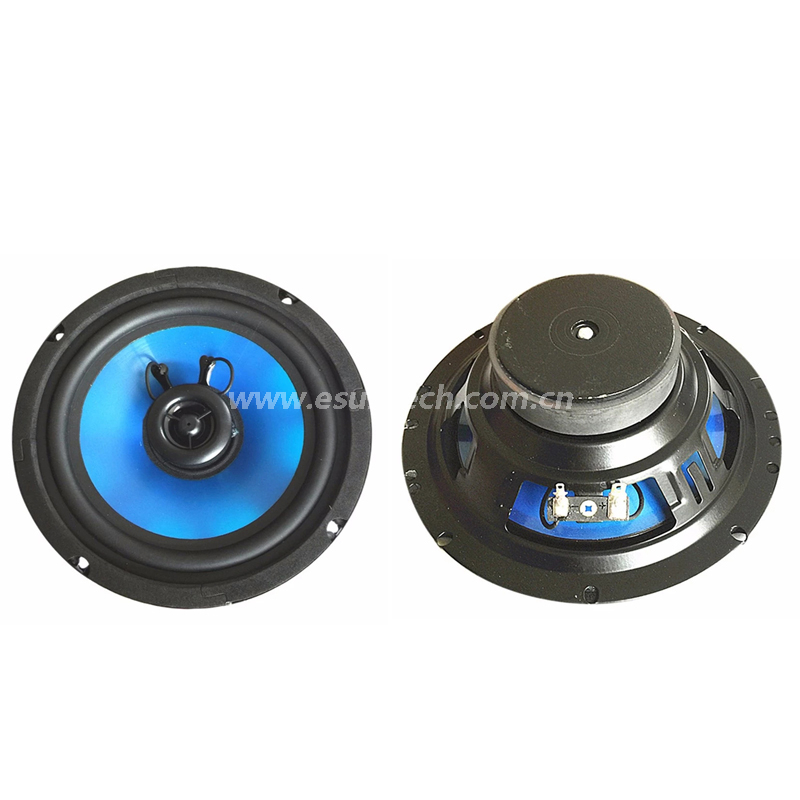

Loudspeaker 165mm YD165-01-8F70P-R Min Full Range car Speaker Drivers-ESUNTECH

  • YD165-01-8F70P-R
  • EST
Quantity:

Loudspeaker 165mm YD165-01-8F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd

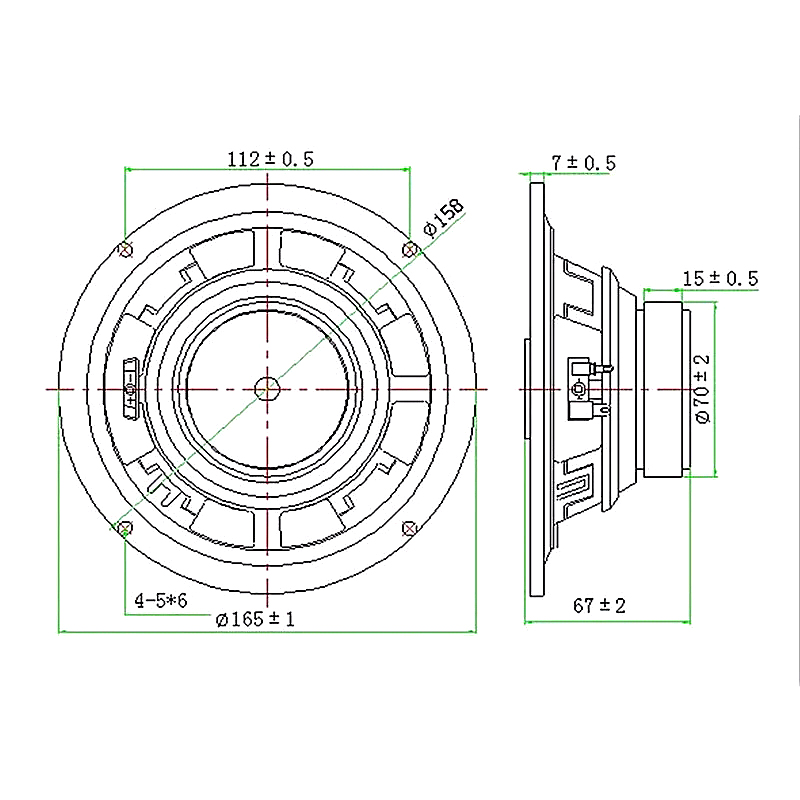

HC166T-3-R8-DRAWING

Model YD165-01-8F70P-R
Dimension: Φ165*67H mm
Cone Material: Injection
Edge: Waterproof
Nominal Power: 30W
Maximum Power: 60W
Impedance: 8±15%Ω
Voice coil: Φ25.5mm Aluminum
Fo: 90±20%Hz

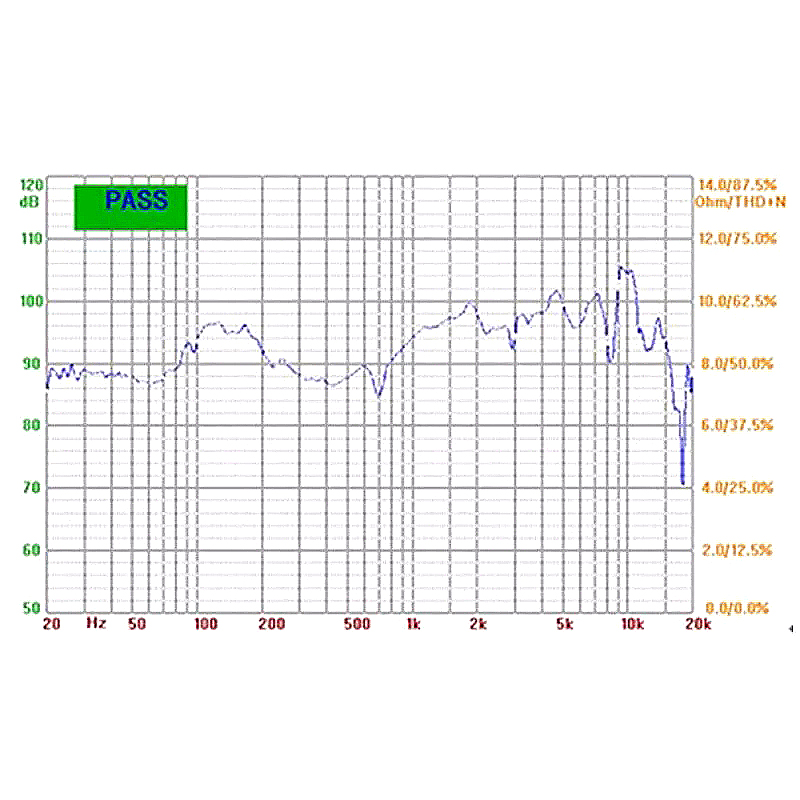

Response: Fo~18KHZ
S.P.L: 90±3dB(at0.1W/0.1m, 0.5, 0.8, 1, 2 KHZ)
Magnet Size: Φ70*32*15mm
Net weight: 580g±8%
