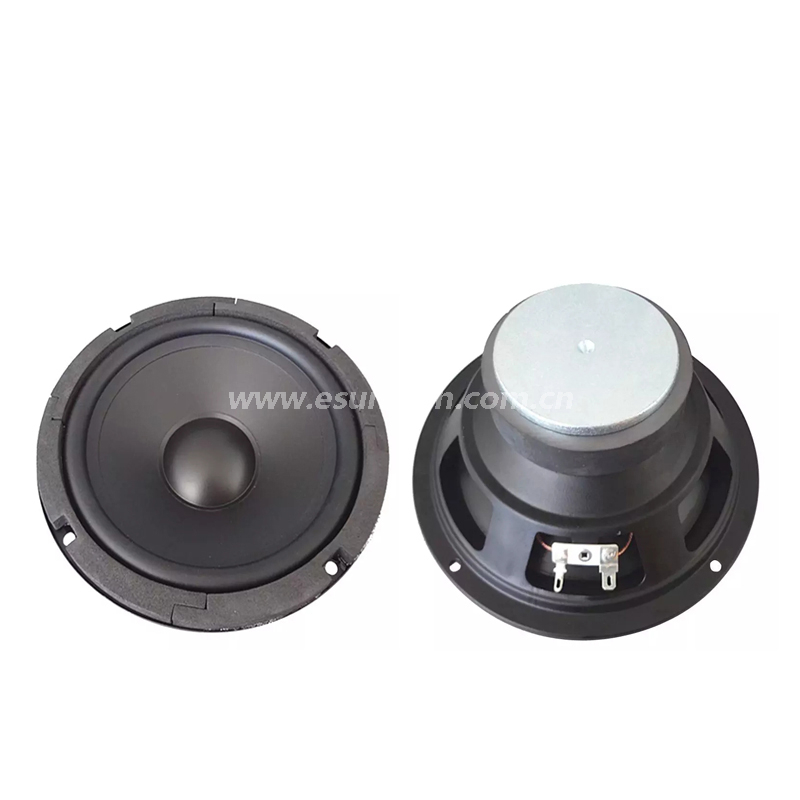

Loudspeaker 166mm YD166-100-8F80P-R Min Full Range car Speaker Drivers-ESUNTECH

Quantity:
  • YD166-100-8F80P-R
  • EST

Loudspeaker 166mm YD166-100-8F80P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd

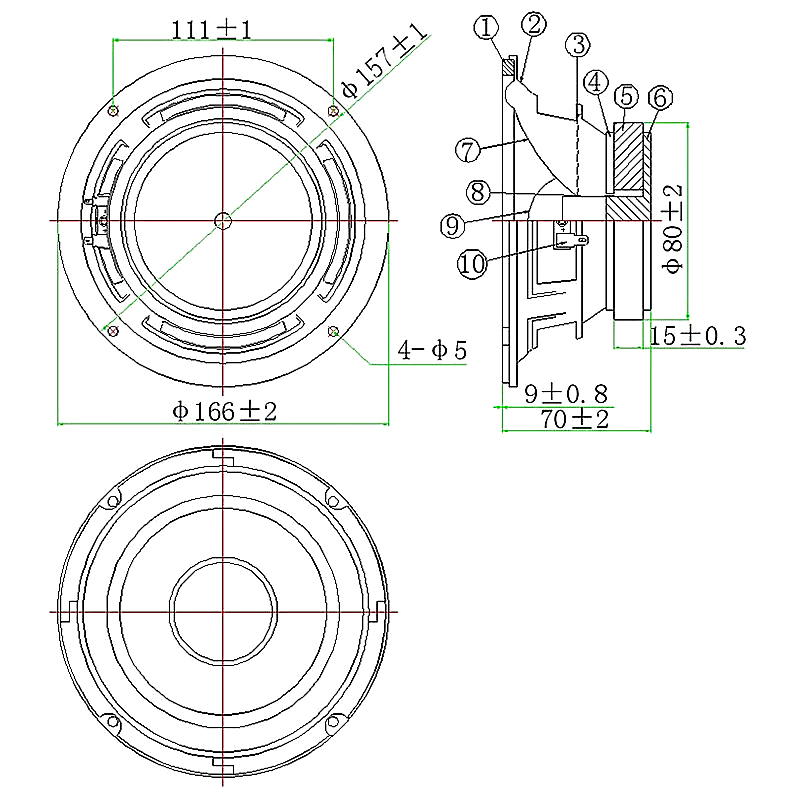

HC166W-10-R8-DRAWING

Model YD166-100-8F80P-R
Dimension: Φ166*70H mm
Cone Material: PP
Edge: Rubber
Nominal Power: 30W
Maximum Power: 50W
Impedance: 8±15%Ω
Voice coil: Φ25.5mm kSV+Cu
Fo: 60±20%Hz

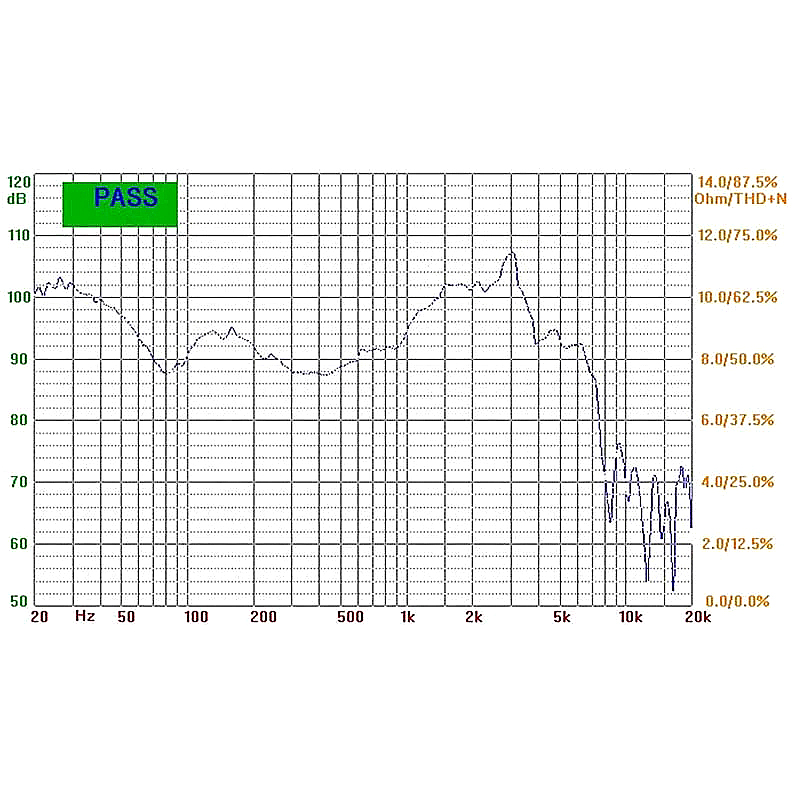

Response: Fo~9KHZ
S.P.L: 94±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size: Φ80*32*15mm
Net weight: 700g±8%
