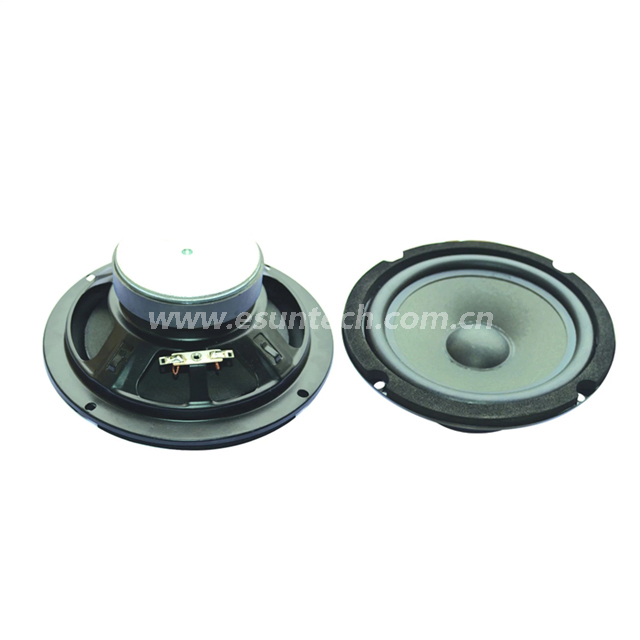

Loudspeaker 166mm YD166-50-8F80P-R Min Full Range Woofer Speaker Drivers-ESUNTECH

Quantity:
  • YD166-50-8F80P-R
  • EST

Loudspeaker 166mm YD166-50-8F80P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd



Model YD166-50-8F80P-R

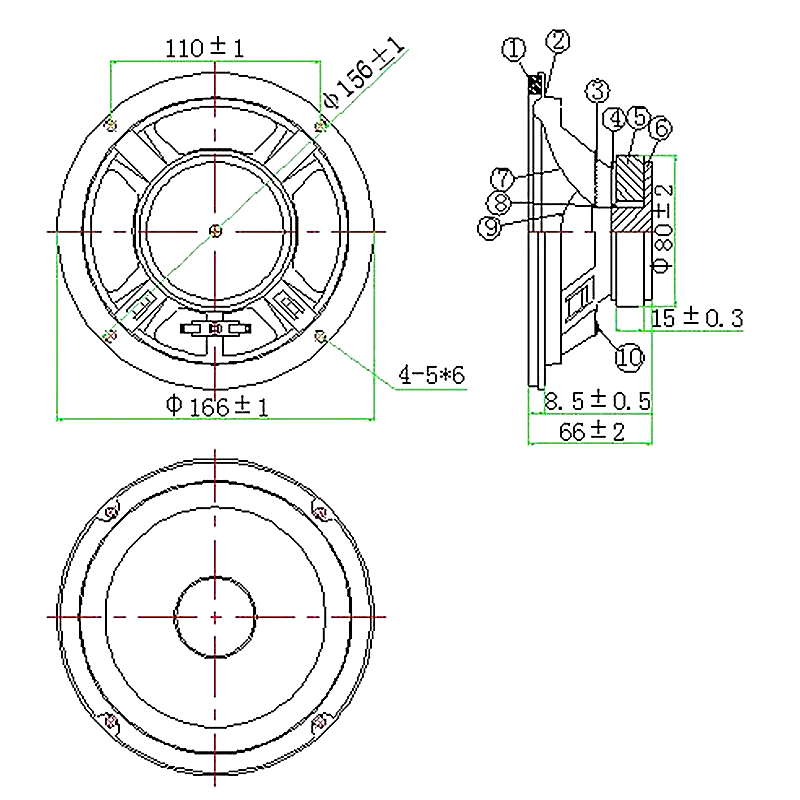

Dimension: Φ166*66H mm
Cone Material: Paper
Edge: Rubber
Nominal Power: 20W
Maximum Power: 40W
Impedance: 8Ω±15%Ω
Voice coil: Φ25.5 ASV+Cu
Fo: 65±20%

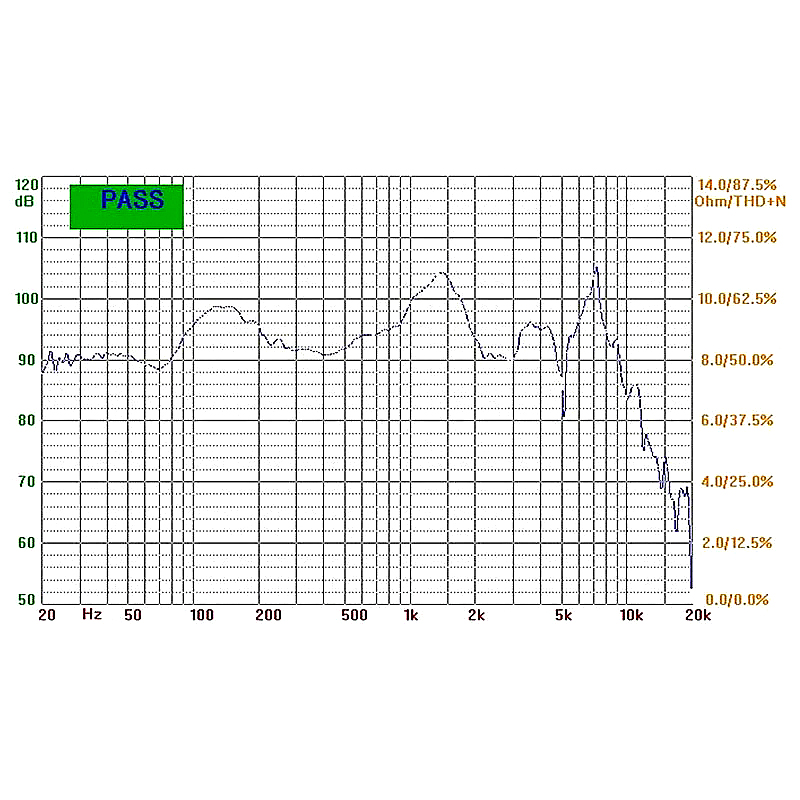

Response: Fo~10KHZ
S.P.L: 98±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ80*32*15mm
Net weight: 725g±8%
