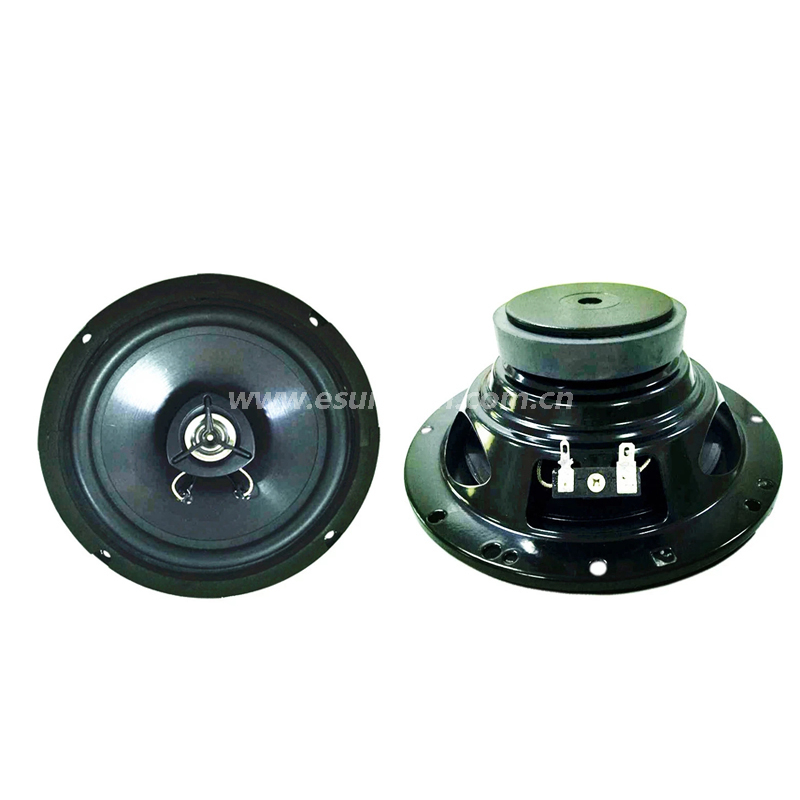

Loudspeaker 168mm YD168-01-4F80P-R Min Full Range car Speaker Drivers-ESUNTECH

Quantity:
  • YD168-01-4F80P-R
  • EST

Loudspeaker 168mm YD168-01-4F80P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd

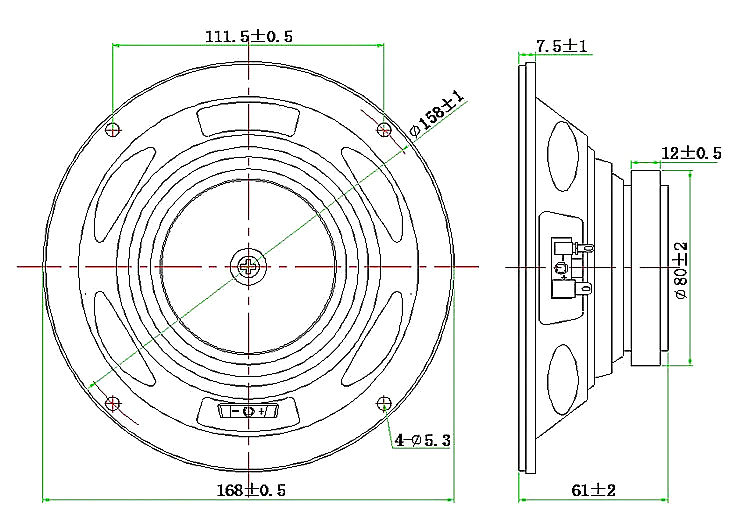

HC166T-1-R4-DRAWING

Model YD168-01-4F80P-R
Dimension: Φ168*61H mm
Cone Material: Injection
Edge: Rubber
Nominal Power: 30W
Maximum Power: 45W
Impedance: 4±15%Ω
Voice coil: Φ25.5mm ASV+Cu+13.28 ASV+Cu
Fo: 70±20%Hz

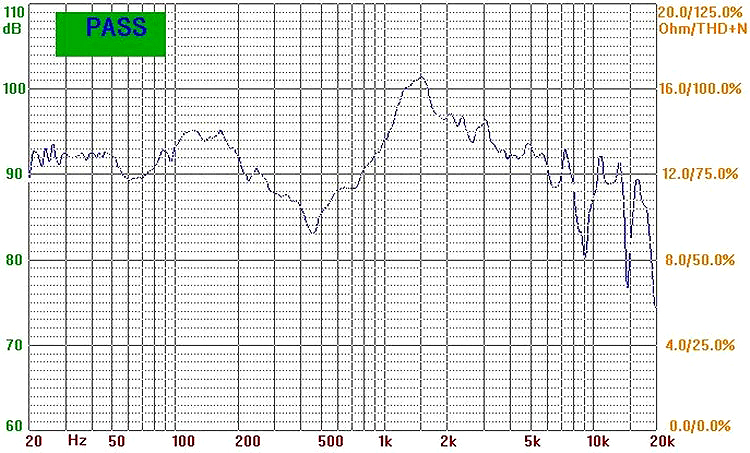

Response: Fo~20KHZ
S.P.L: 88±3dB(at0.1W/0.1m, 0.5, 0.8, 1, 2 KHZ)
Magnet Size: Φ80*40*12mm
Net weight: 556g±8%
