Loudspeaker 28mm YD28-01-8N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-ESUNTECH

Quantity:
  • YD28-01-8N12.5P-R
  • EST

Loudspeaker 28mm YD28-01-8N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




Model YD28-01-8N12.5P-R

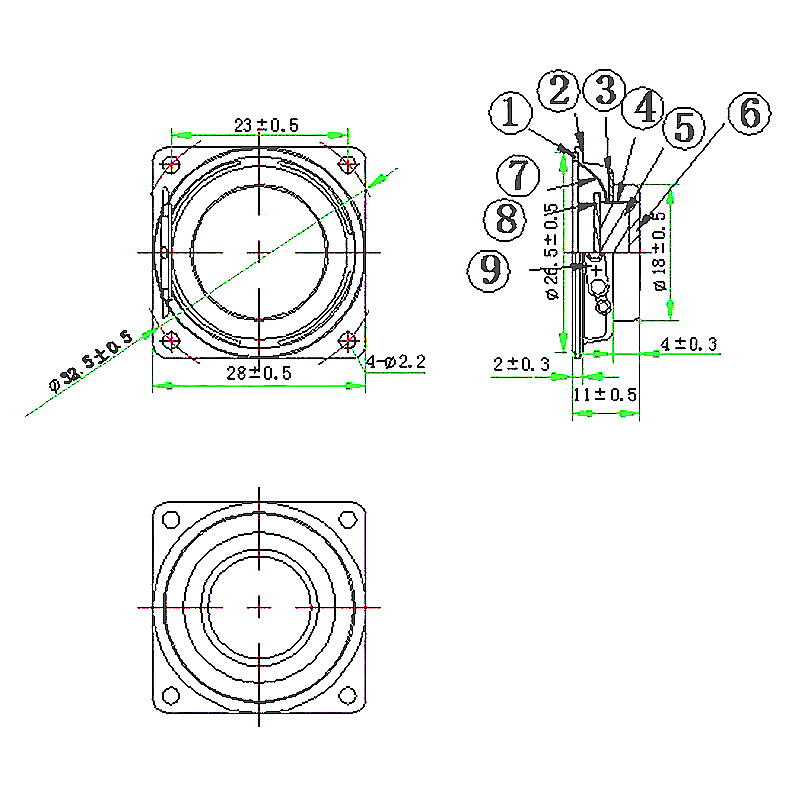

Dimension: 28*28*11H mm
Cone Material: PU+Paper
Edge: Paper
Nominal Power: 2W
Maximum Power: 3W
Impedance: 8±15%Ω
Voice coil: Φ13.28mm PL+Cu
Fo: 500±20%Hz

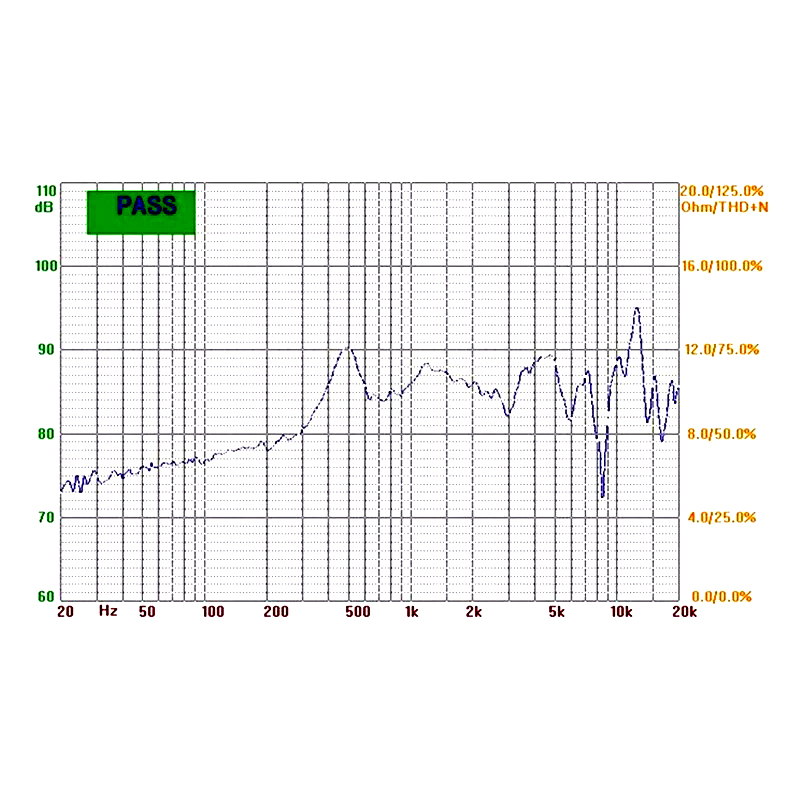

Response: Fo~20KHZ
S.P.L: 86±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size: Φ12.5*2.0mm
Net weight: 11g±8%
