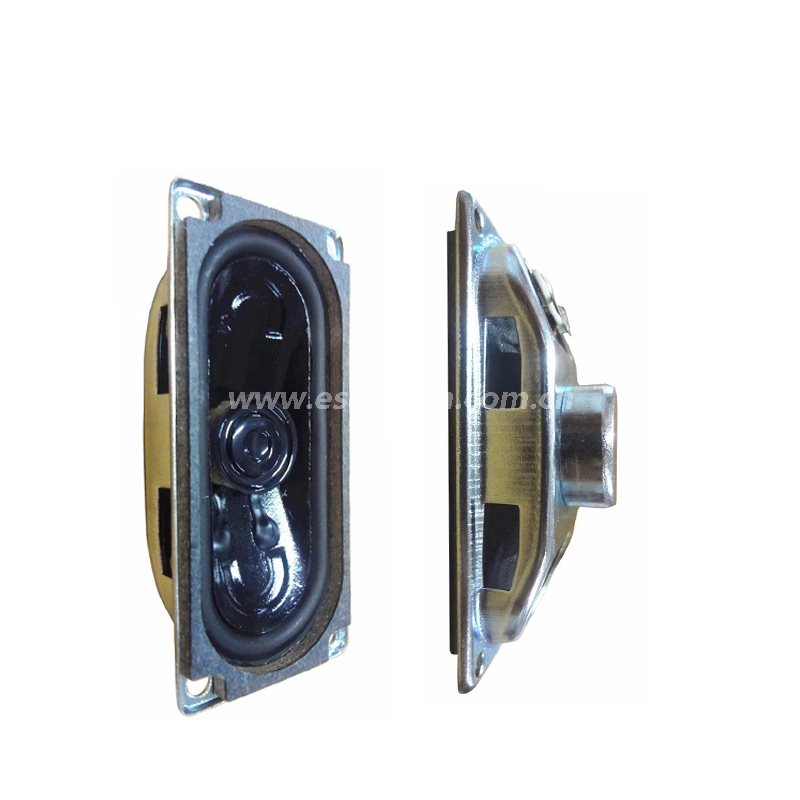

Loudspeaker 30mmx70mm YD3070-02-8N12.5P-R Min Full Range TV speaker laptop speaker Drivers-ESUNTECH

Quantity:

Loudspeaker 30x70mm YD3070-02-8F12.5P-R Min Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd






Model YD3070-02-8N12.5P-R

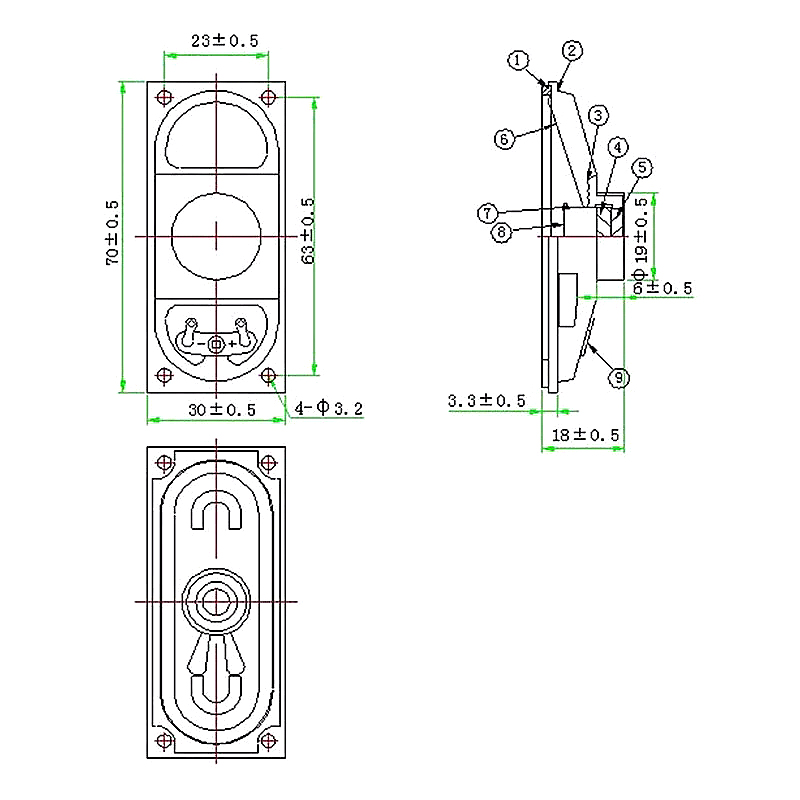

Dimension: 30*70*18H mm
Cone Material: PU+Paper
Edge: Paper
Nominal Power: 3W
Maximum Power: 5W
Impedance: 8±15%Ω
Voice coil: Φ13.28mm KSV+Cu
Fo: 420±20%Hz

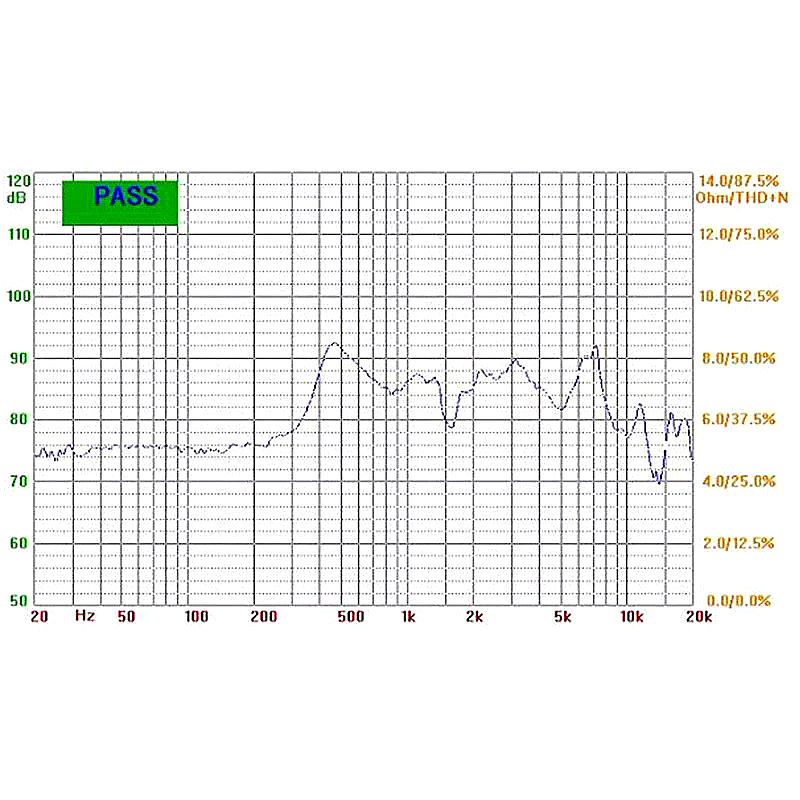

Response: Fo~10KHZ
S.P.L: 87±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ12.5*2.5mm
Net weight: 22g±8%
