Loudspeaker 30mmx70mm YD3070-05-8N12.5M-R Min Full Range Waterproof Speaker Drivers-ESUNTECH

Quantity:

Loudspeaker 30*70mm YD30-05-8N12.5M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd







Model YD3070-05-8N12.5M-R

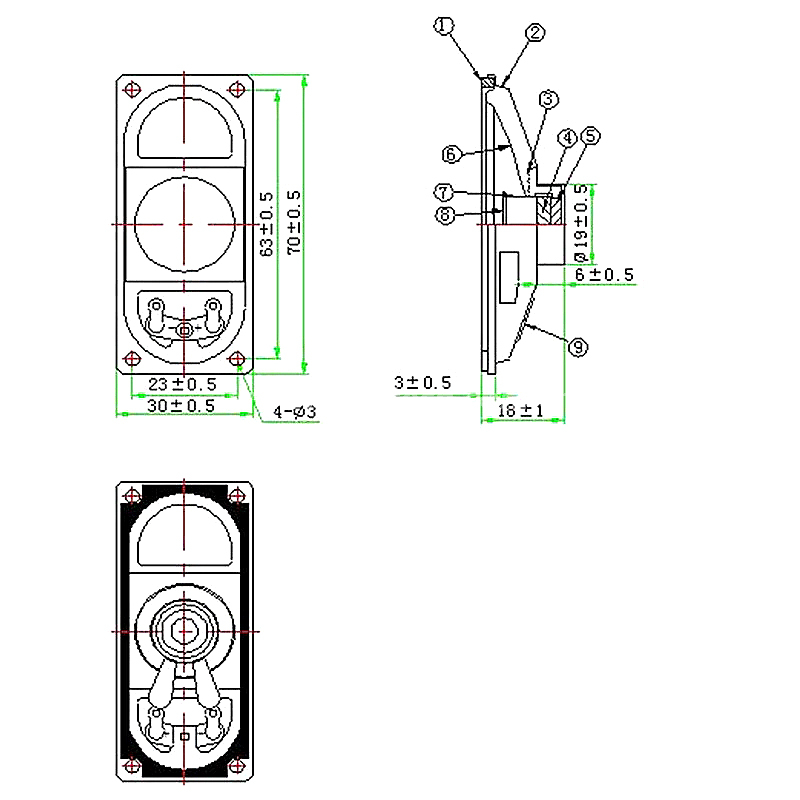

Dimension: 30*70*18H mm
Cone Material: PET
Edge:  Paper
Nominal Power: 3W
Maximum Power: 4W
Impedance: 8Ω±15%Ω
Voice coil: 13.28mm PL+Cu
Fo: 700±20%

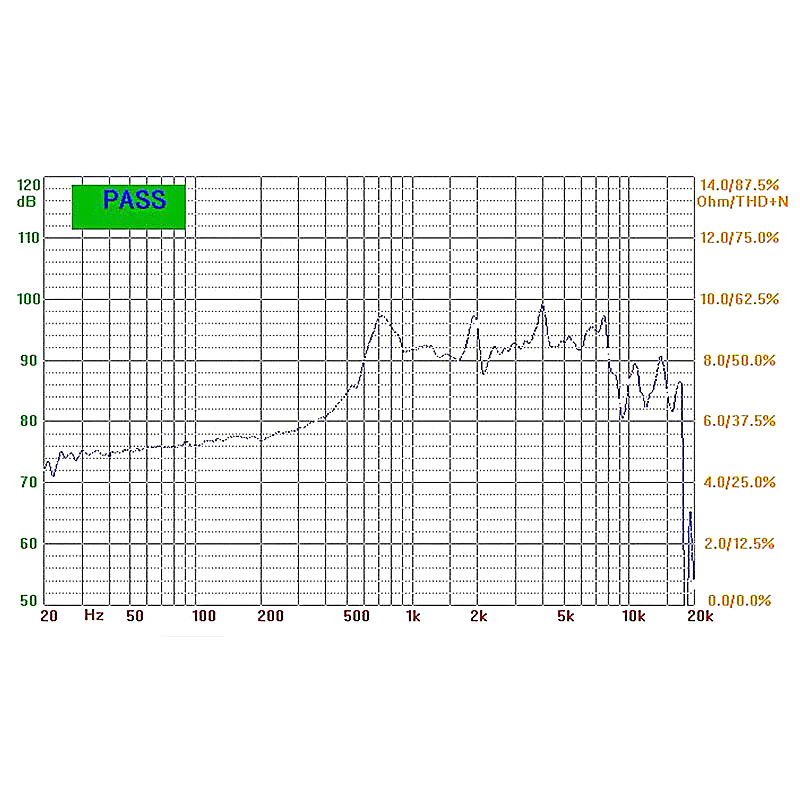

Response: Fo~15KHZ
S.P.L: 92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ12.5*2.5mm
Net weight: 23g±8%
