Loudspeaker 40mm YD40-13-4N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-ESUNTECH

Quantity:
  • YD40-13-4N12.5P-R
  • EST

Loudspeaker 40mm YD40-13-4N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




Model YD40-13-4N12.5P-R

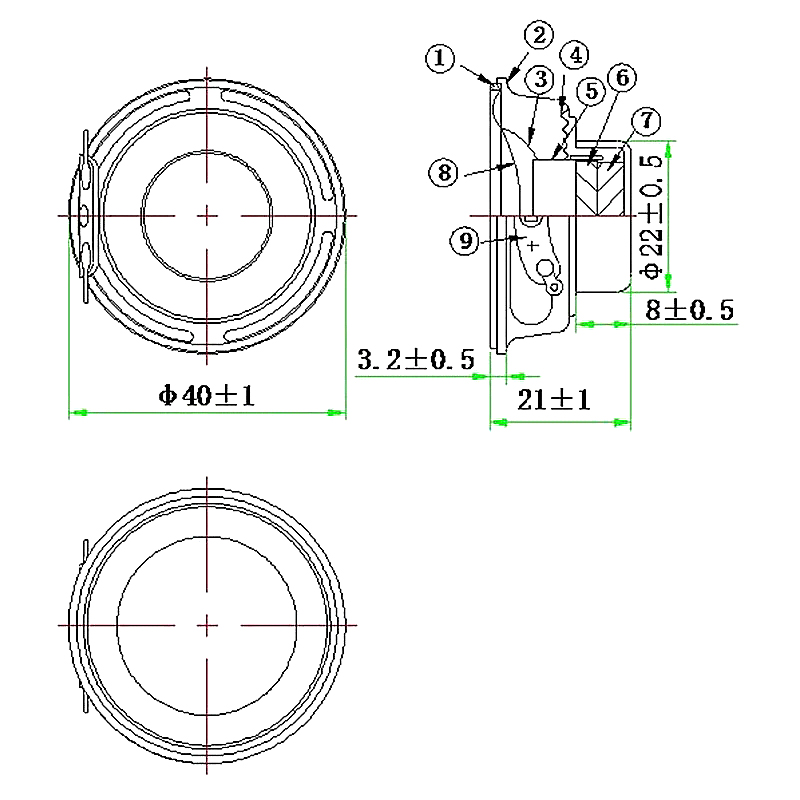

Dimension: Φ40*21H mm
Cone Material: PU+Paper
Edge: Paper
Nominal Power: 3W
Maximum Power: 5W
Impedance: 4±15%Ω
Voice coil: Φ13.28mm PL+Cu
Fo: 200±20%Hz

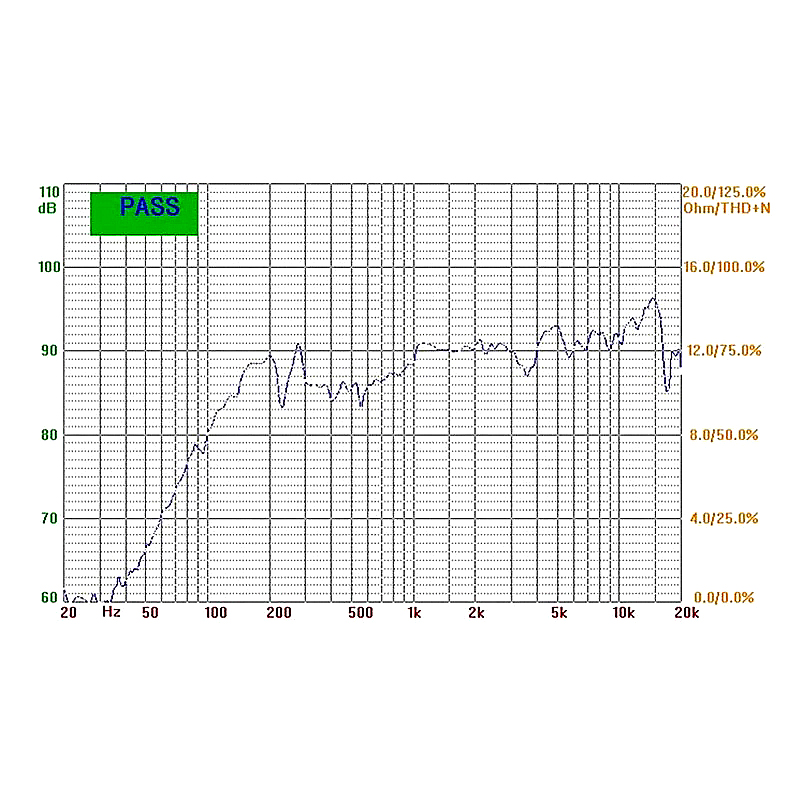

Response: Fo~20KHZ
S.P.L: 88±3dB(at0.1W/0.1m 0.5, 0.8, 1.0, 2 KHZ)
Magnet Size: Φ12.5*4.0mm
Net weight: 29g±8%
