Loudspeaker 40mm YD40-15-8N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-ESUNTECH

Quantity:
  • YD40-15-8N12.5P-R
  • EST

Loudspeaker 40mm YD40-15-8N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




Model YD40-15-8N12.5P-R

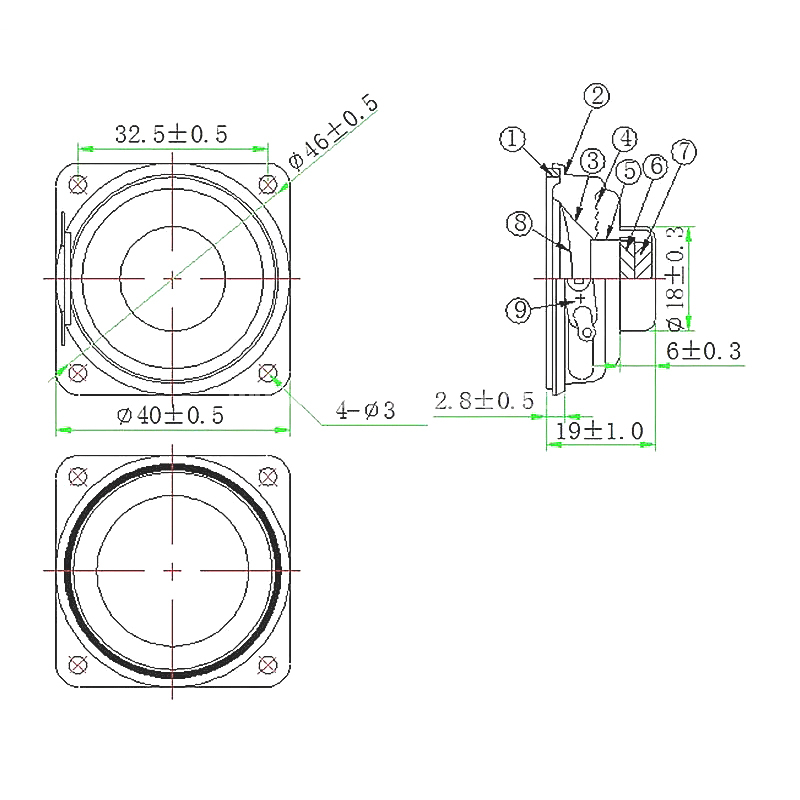

Dimension: Φ40*19H mm
Cone Material: PU+Paper
Edge: PU
Nominal Power: 3W
Maximum Power: 4W
Impedance: 8±15%Ω
Voice coil: Φ13.28mm PL+Cu
Fo: 230±20%Hz

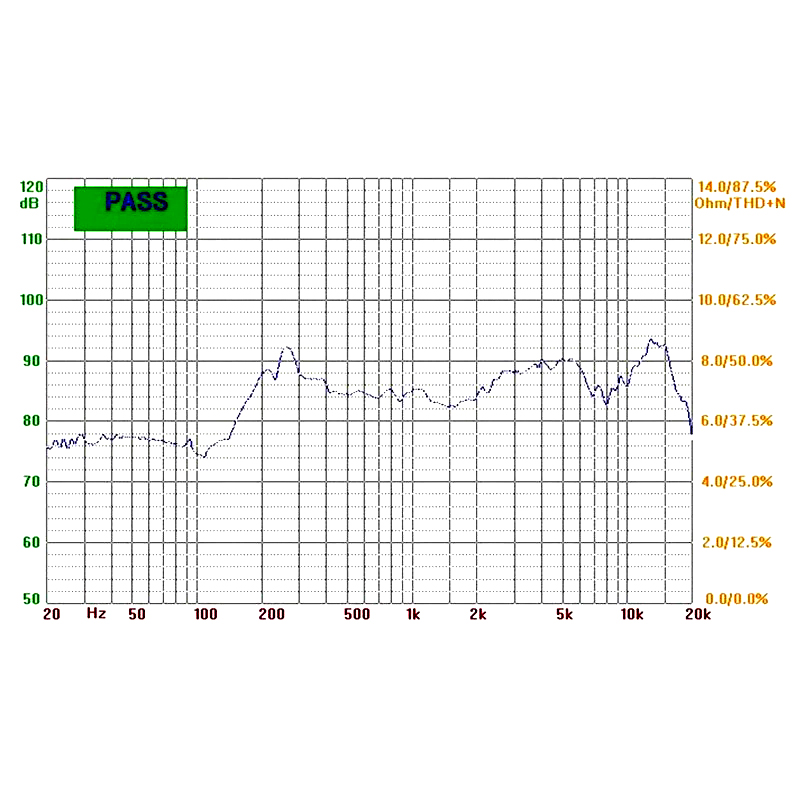

Response: Fo~20KHZ
S.P.L: 85±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size: Φ12.5*3.0mm
Net weight: 16g±8%
