Loudspeaker 40mm YD40-19-4N32P-R Min Full Range Multimedia Speaker Drivers-ESUNTECH

  • YD40-19-4N32P-R
  • EST
Quantity:

Loudspeaker 40mm YD40-19-4N32P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd







Model YD40-19-4N32P-R

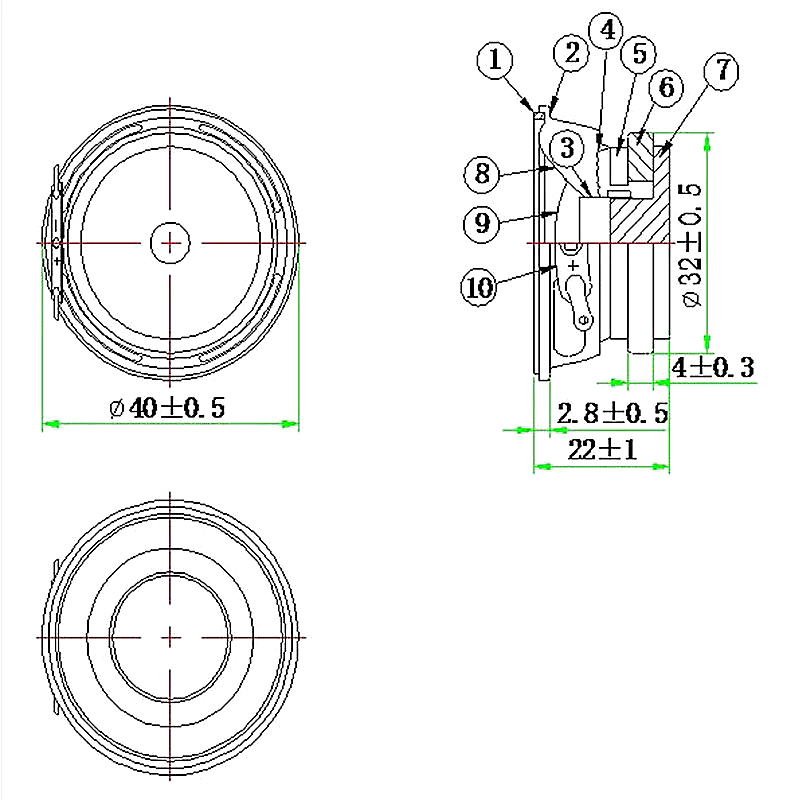

Dimension: Φ40*22H mm
Cone Material: Paper
Edge: PU
Nominal Power: 5W
Maximum Power: 6W
Impedance: 4±15%Ω
Voice coil: Φ13.28mm KSV+Cu
Fo: 230±20%Hz

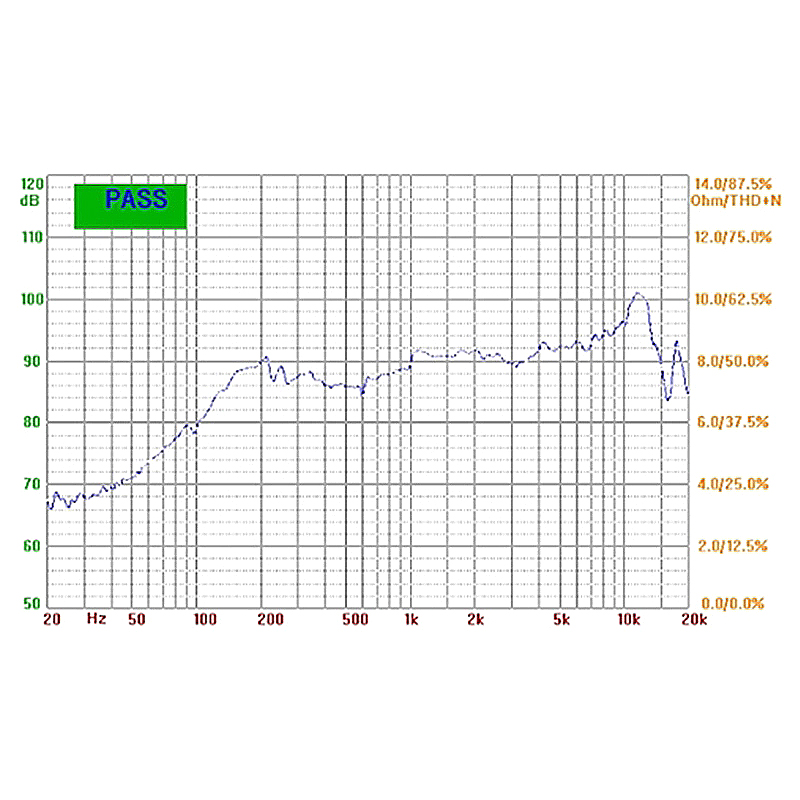

Response: Fo230~20KHZ
S.P.L: 91±3dB(AT 0.1W/0.1M,Average of  0.6,0.8,1.0,1.2  KHz)
Magnet Size: Φ32*18*4mm
Net weight: 53g±8%
