Loudspeaker 41mm YD41-01-8N12.5P-R Min Full Range Equipment Speaker Drivers-ESUNTECH

Quantity:
  • YD41-01-8N12.5P-R
  • EST

Loudspeaker 41mm YD41-01-8N12.5P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






Model YD41-01-8N12.5P-R

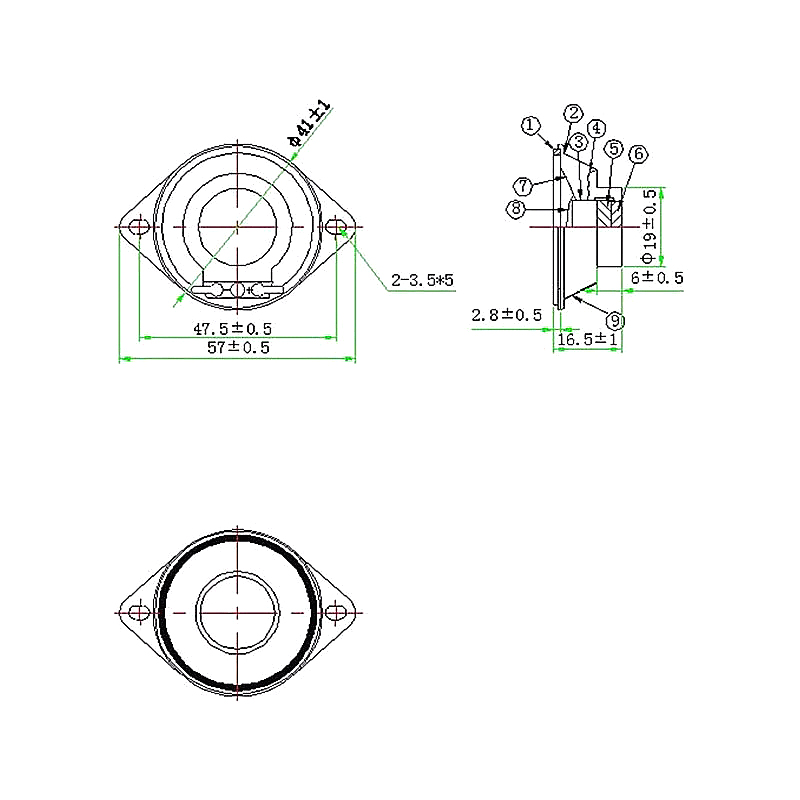

Dimension: Φ41*57*16.5H mm
Cone Material:  Paper
Edge:  Paper
Nominal Power: 2W
Maximum Power: 3W
Impedance: 8Ω±15%Ω
Voice coil: Φ16.28mm  KSV+Cu
Fo: 1080±20%

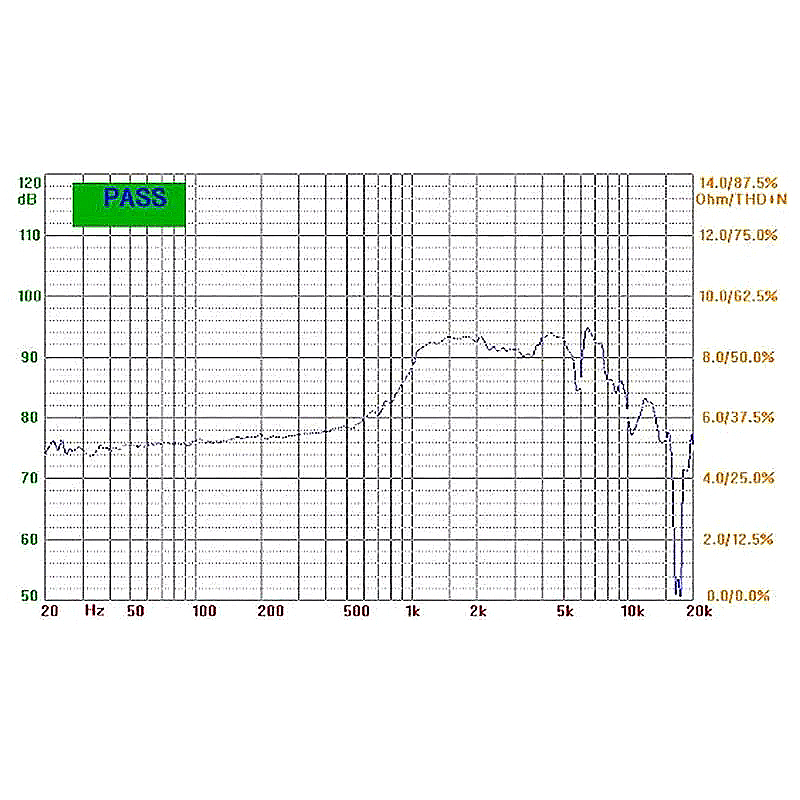

Response: Fo~10KHZ
S.P.L: 91±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ12.5*2.5Hmm
Net weight: 20g±8%
