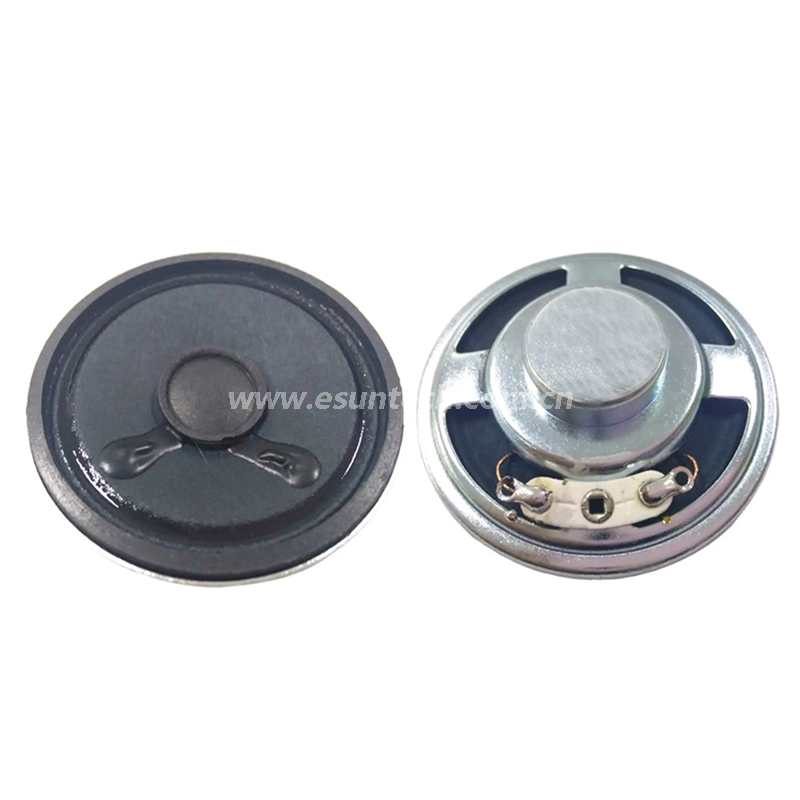

Loudspeaker 45mm YD45-08-16N12.5P-R Min Full Range Telephone Speaker Drivers-ESUNTECH

Quantity:
  • YD45-08-16N12.5P-R
  • EST

Loudspeaker 45mm YD45-08-16N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co Ltd




Model YD45-08-16N12.5P-R

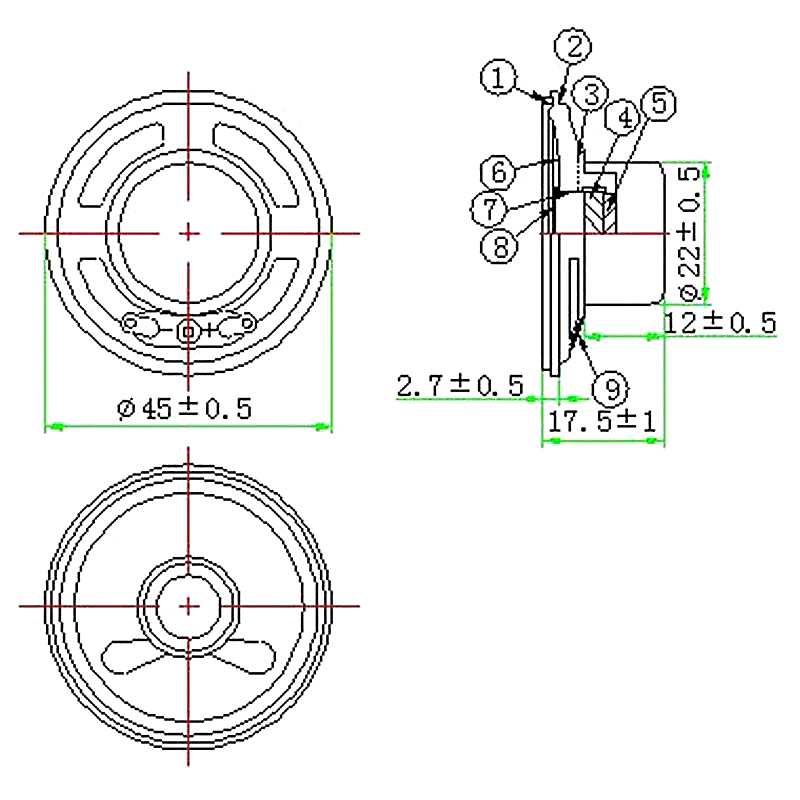

Dimension: Φ45*17.5H mm
Cone Material: Paper
Edge: Paper
Nominal Power: 0.3W
Maximum Power: 0.5W
Impedance: 16±15%Ω
Voice coil: Φ16.28mm PL+Cu
Fo: 520±20%Hz

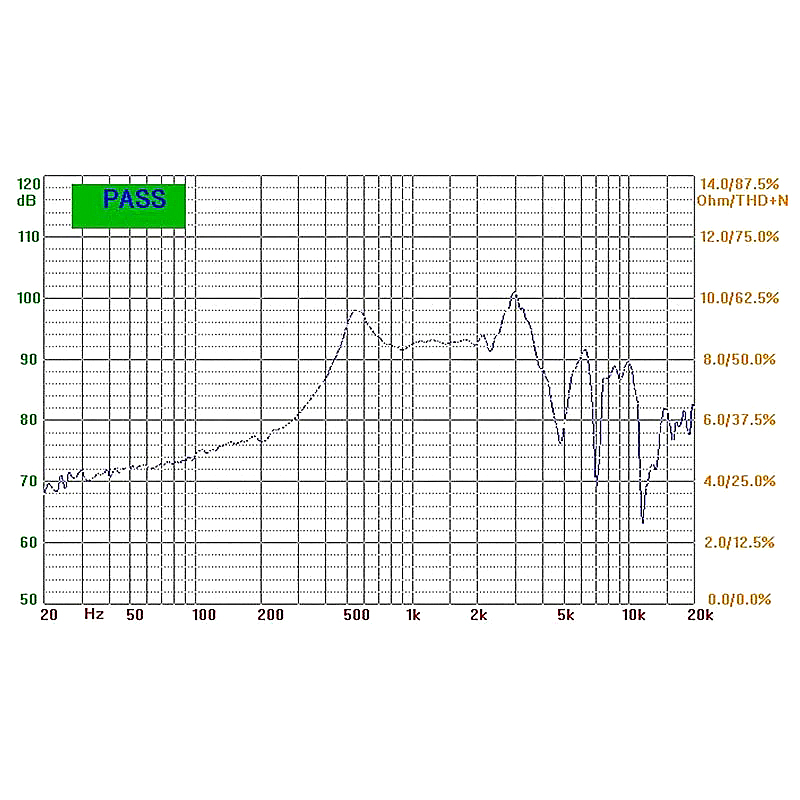

Response: Fo~5KHZ
S.P.L: 93±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ12.5*2.0mm
Net weight: 30g±8%
