Loudspeaker 50*120mm YD512-01-8F45P-R Min Full Range TV speaker laptop speaker Drivers-ESUNTECH

  • YD512-01-8F45P-R
  • EST
Quantity:

Loudspeaker 51mm*120mm YD512-01-8F45P-R Min Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd






Model YD512-01-8F45P-R

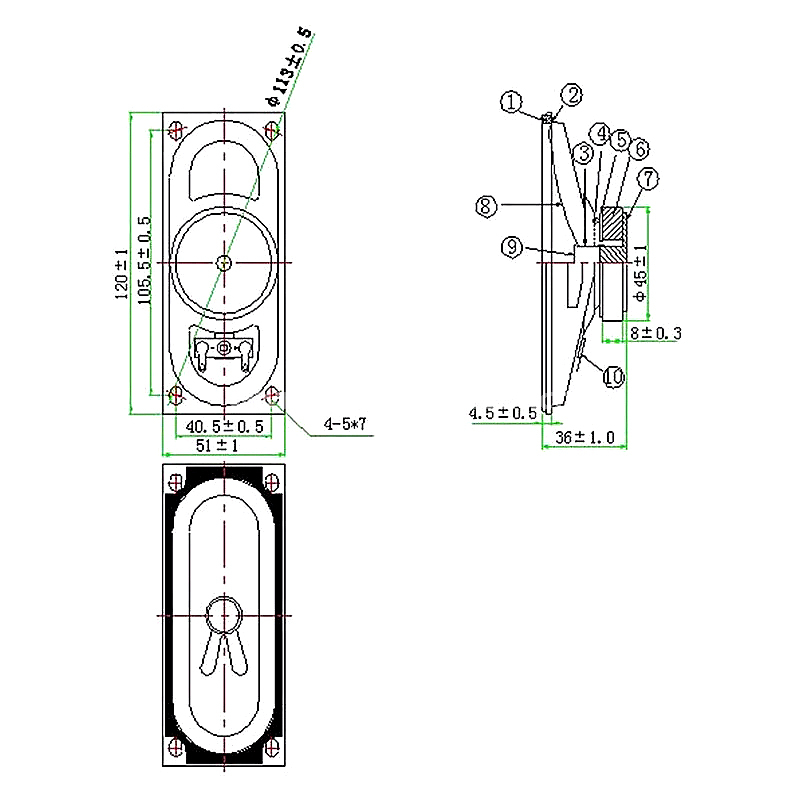

Dimension: 51*120*36H mm
Cone Material: Paper
Edge: Rubber
Nominal Power: 6W
Maximum Power: 8W
Impedance: 8±15%Ω
Voice coil: Φ13.28mm  KSV+Cu
Fo: 150±20%Hz
Response: Fo~20KHZ
S.P.L: 84±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size: Φ45*19*8mm
Net weight: 130g±8%
