Loudspeaker 50*90mm YD5090-57-8F32P-R Min Full Range TV speaker laptop speaker Drivers-ESUNTECH

Quantity:
  • YD5090-57-8F32P-R
  • EST

Loudspeaker 50mmx90mm YD5090-57-8F32P-R  Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd





Model YD511-57-8F32P-R

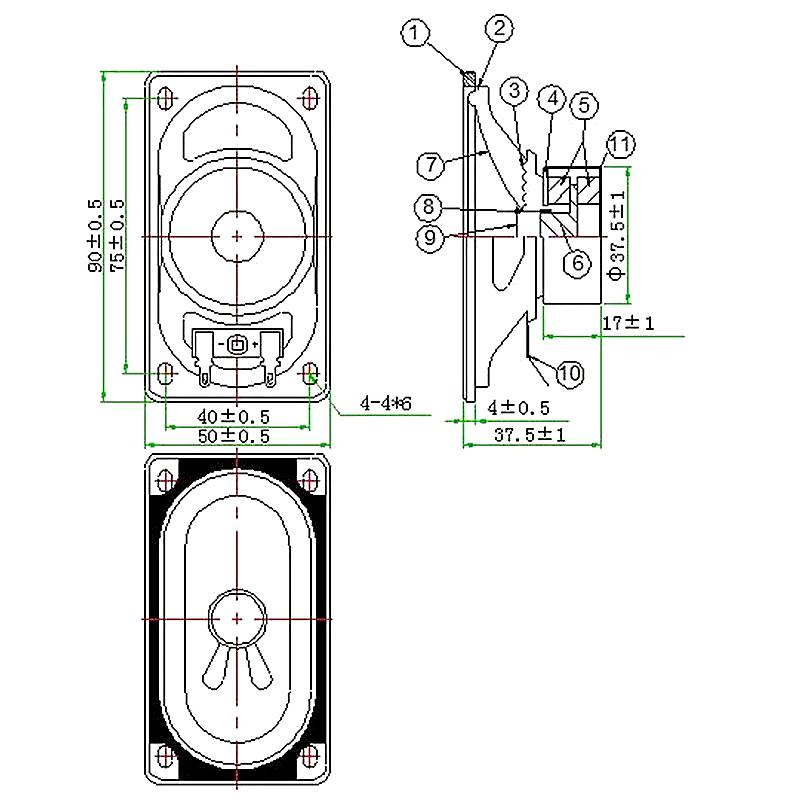

Dimension: 50*90*37.5H mm
Cone Material: Paper
Edge: Foam
Nominal Power: 3W
Maximum Power: 5W
Impedance: 8±15%Ω
Voice coil: Φ13.28mm PL+Cu
Fo: 200±20%Hz

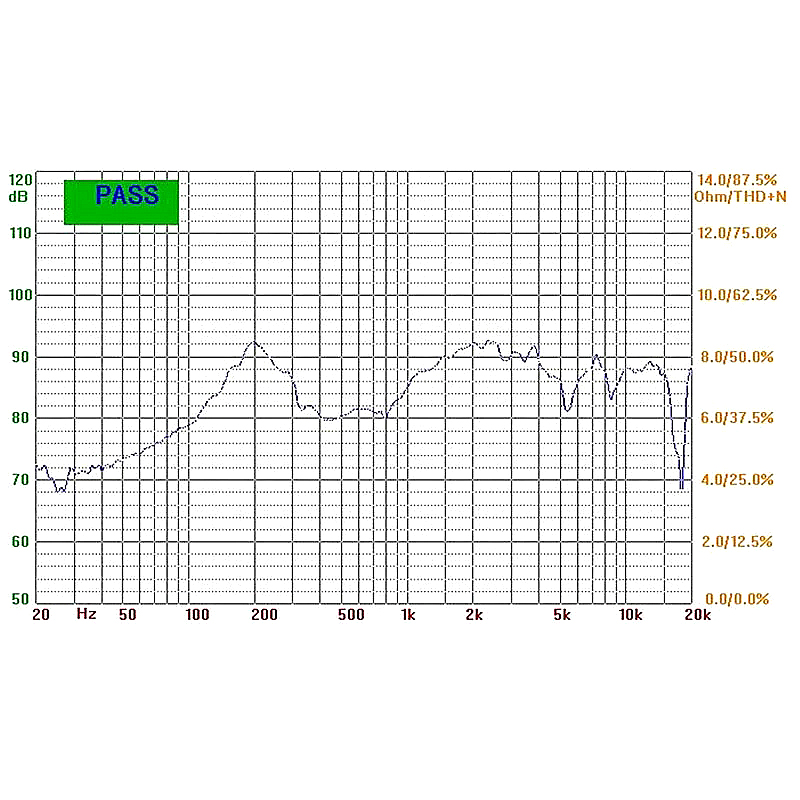

Response: Fo~20KHZ
S.P.L: 84±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: 2-Φ32*18*6
Net weight: 90g±8%
