Loudspeaker 50mm YD50-26-4N15P-R Min Full Range bluetooth Audio Speaker Drivers-ESUNTECH

  • YD50-26-4N15P-R
  • EST
Quantity:

Loudspeaker 50mm YD50-26-4N15P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd



Model YD50-26-4N15P-R

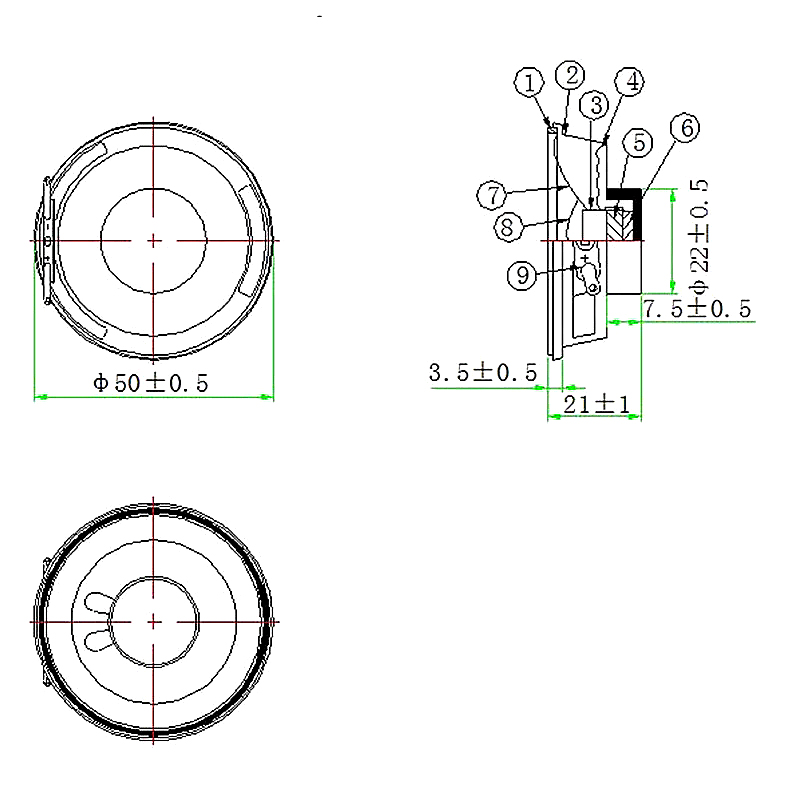

Dimension: Φ50*21H mm
Cone Material: Paper
Edge: PU
Nominal Power: 3W
Maximum Power: 4W
Impedance: 4±15%Ω
Voice coil: Φ16.28mm KSV+Cu
Fo: 160±20%Hz

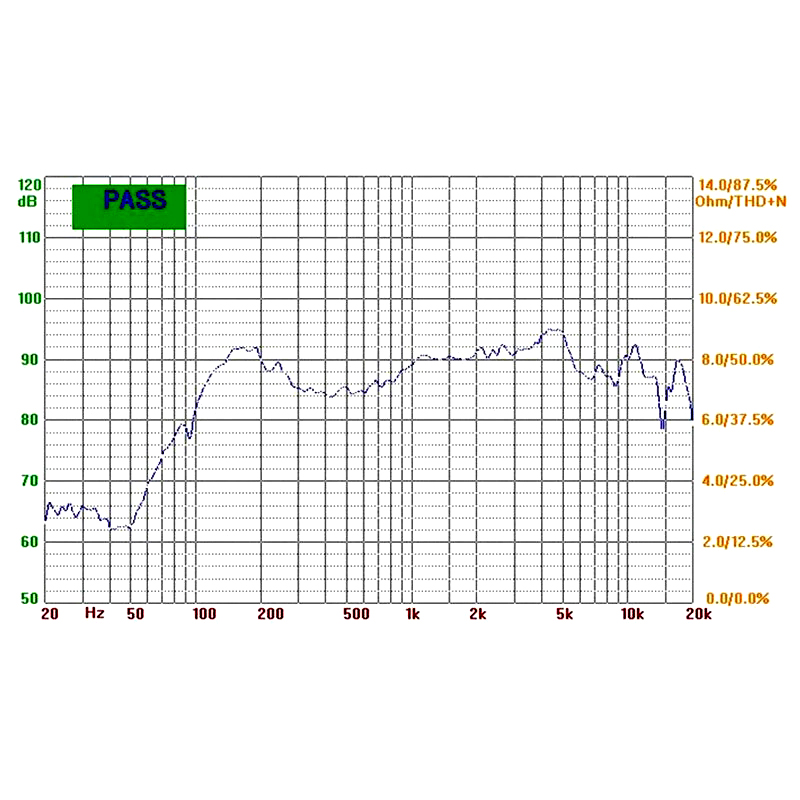

Response: 160-20KHZ
S.P.L: 88±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size: Φ15*4.0mm
Net weight: 32g±8%
