Loudspeaker 52mm YD52-04-4N32P-R Min Full Range bluetooth Audio Speaker Drivers-ESUNTECH

Quantity:
  • YD52-04-4N32P-R
  • EST

Loudspeaker 52mm YD52-04-4N32P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




Model YD52-04-4N32P-R

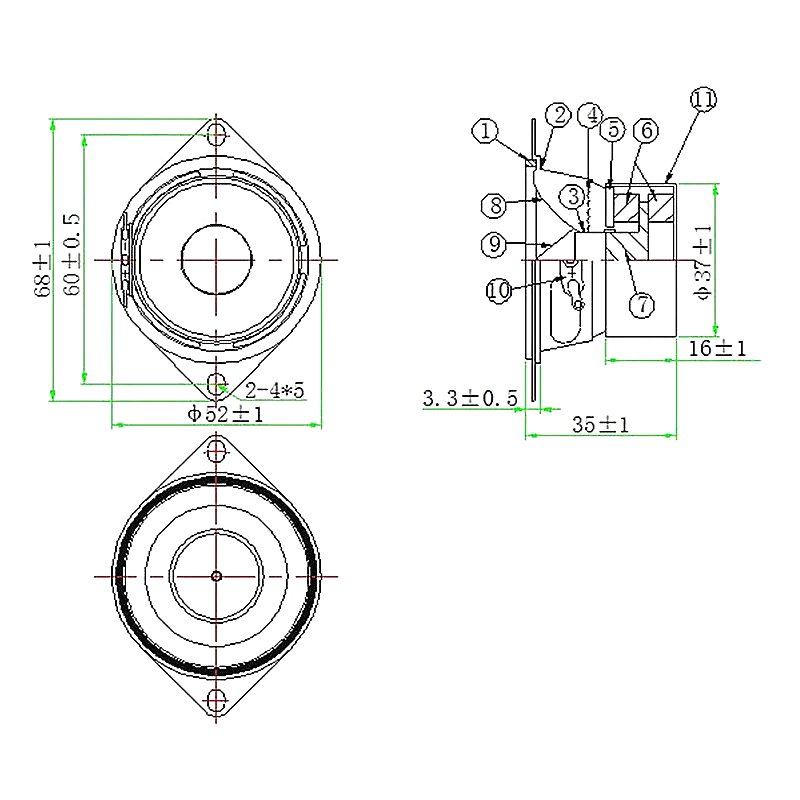

Dimension: 52*68*35H mm
Cone Material: Paper
Edge: Foam
Nominal Power: 5W
Maximum Power: 6W
Impedance: 4±15%Ω
Voice coil: Φ13.28mm KSV+Cu
Fo: 180±20%Hz
Response: Fo~20KHZ
S.P.L: 84±3dB(at0.1W/0.1m, 0.5, 0.8, 1, 2 KHZ)
Magnet Size: Φ32*18*6mm
Net weight: 80g±8%
