Loudspeaker 53mm YD53-02-4N15.5P-R Min Full Range bluetooth Audio Speaker Drivers-ESUNTECH

Quantity:
  • YD53-01-8N18.5P-R
  • EST

Loudspeaker 53mm YD53-01-8N18.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd



Model YD53-02-4N15.5P-R

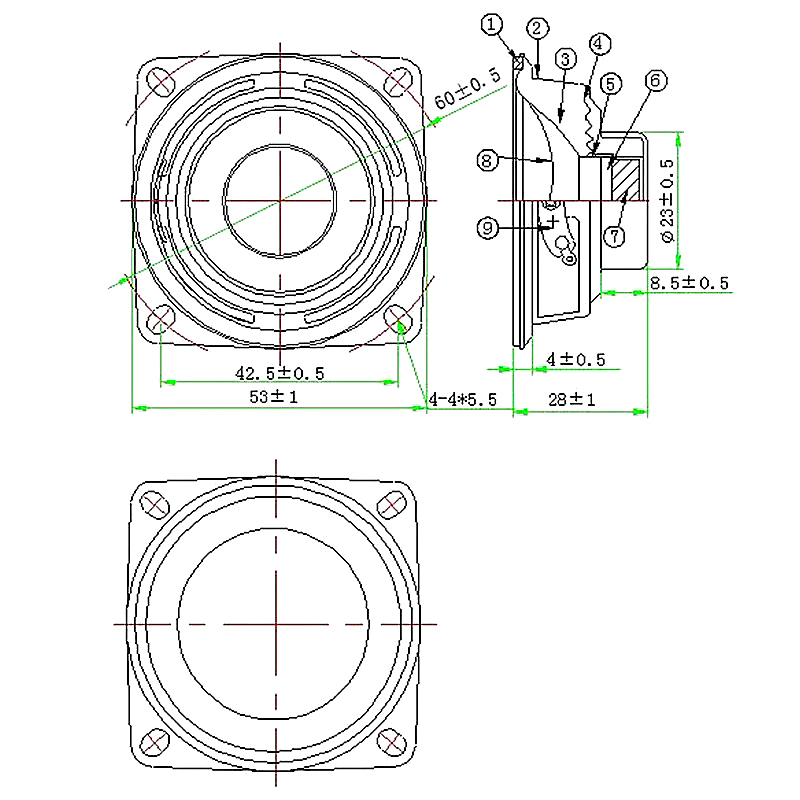

Dimension: 53*53*28H mm
Cone Material: Paper
Edge: Ruber
Nominal Power: 5W
Maximum Power: 8W
Impedance: 4±15%Ω
Voice coil: Φ16.28mm PSV+Cu
Fo: 150±20%Hz
Response: Fo~20KHZ
S.P.L: 87±3dB(AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ15.5*5.0mm
Net weight: 35g±8%
