Loudspeaker 53mm YD53-03-8N18.5P-R Min Full Range bluetooth Audio Speaker Drivers-ESUNTECH

  • YD53-03-8N18.5P-R
  • EST
Quantity:

Loudspeaker 53mm YD53-03-8N18.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




Model YD53-03-8N18.5P-R

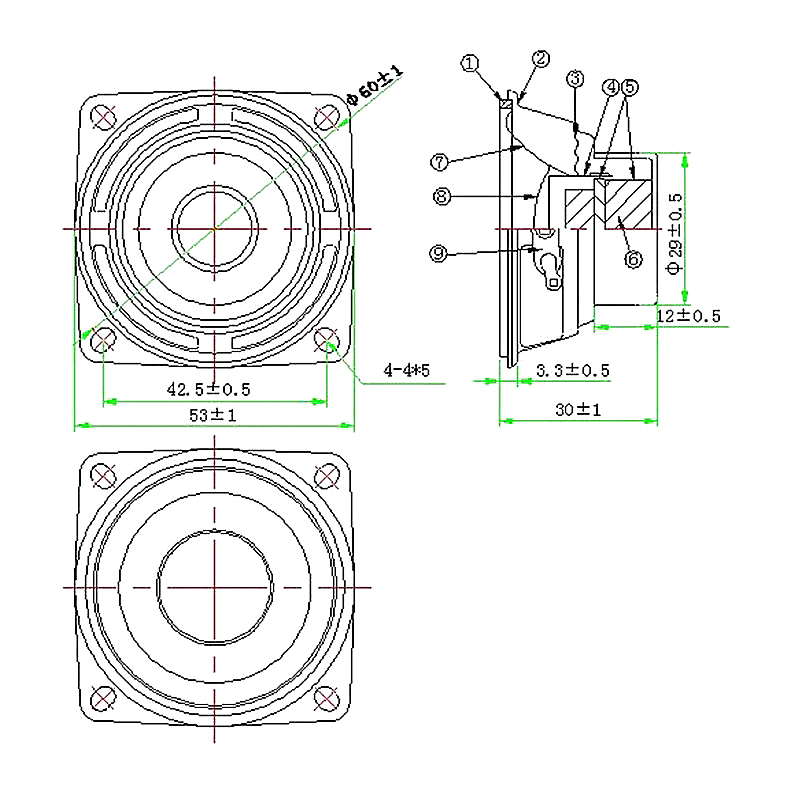

Dimension: 53*53*30H mm
Cone Material: PU+Paper
Edge: Paper
Nominal Power: 10W
Maximum Power: 12W
Impedance: 8±15%Ω
Voice coil: Φ20.4mm  KSV+Cu
Fo: 180±20%Hz

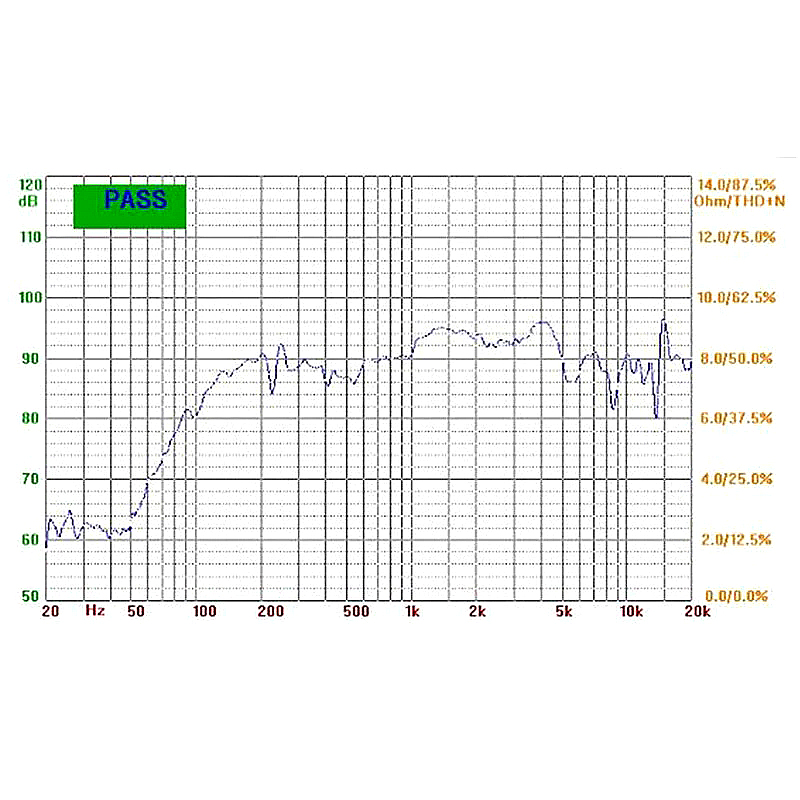

Response: Fo~20KHZ
S.P.L: 91±3dB (AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ18.5*5.5+Φ15*5mm
Net weight: 75g±8%
