Loudspeaker 57mm YD57-01-32F32P-R 8 32 ohm Full Range Equipment Speaker Drivers-ESUNTECH

  • YD57-01-32F32P-R
  • EST
Quantity:

Loudspeaker 57mm YD57-01-32F32P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






Model YD57-01-32F32P-R

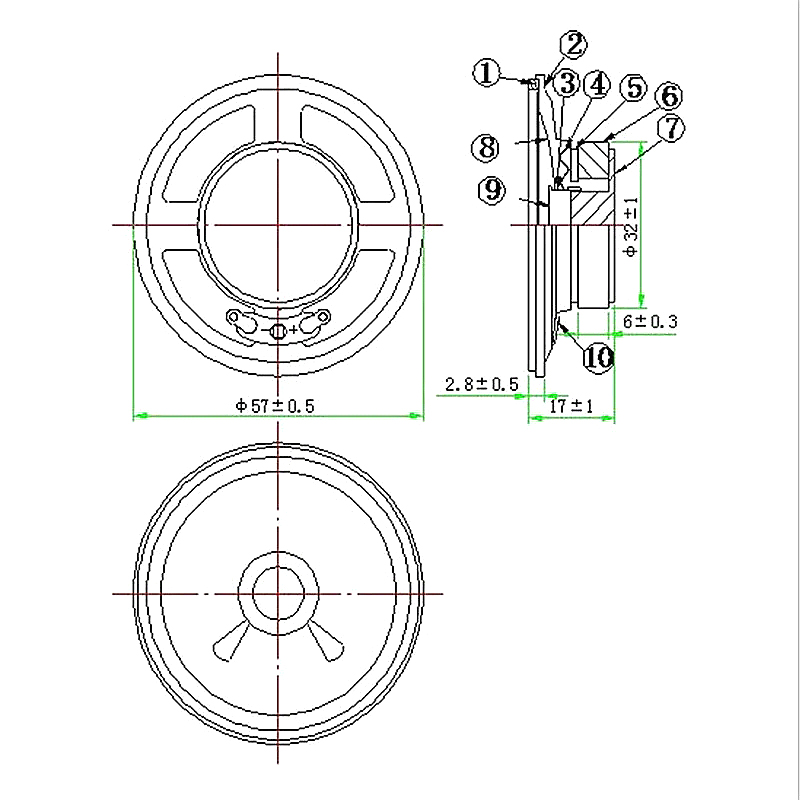

Dimension: Φ57*17H mm
Cone Material: Paper
Edge: Paper
Nominal Power: 1W
Maximum Power: 2W
Impedance: 8Ω±15%Ω
Voice coil: 13.28mm PL+Cu
Fo: 400±20%

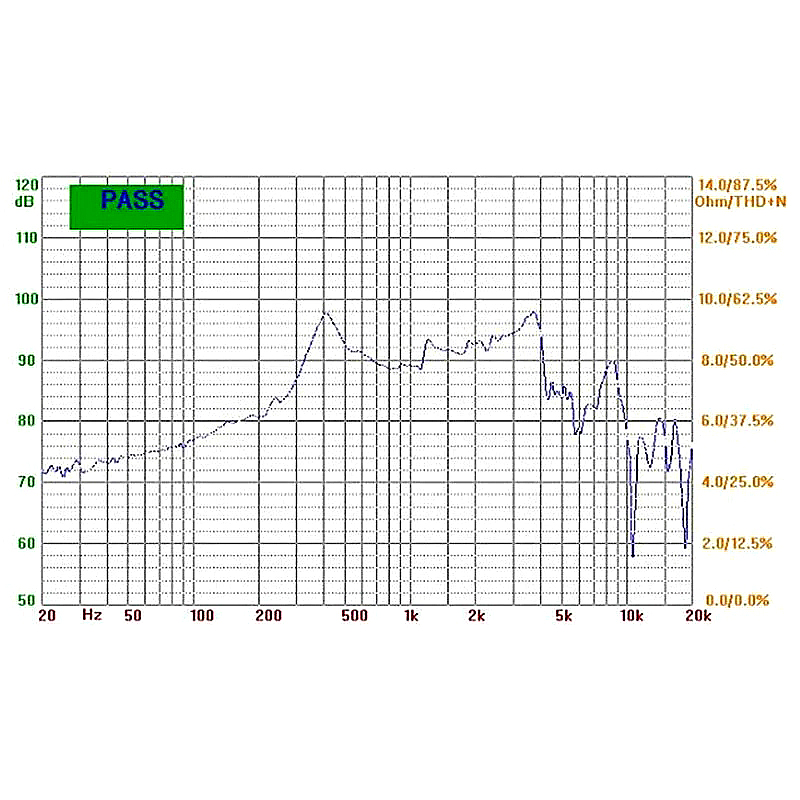

Response: Fo~5KHZ
S.P.L: 92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ32*18*6mm
Net weight: 47g±8%
