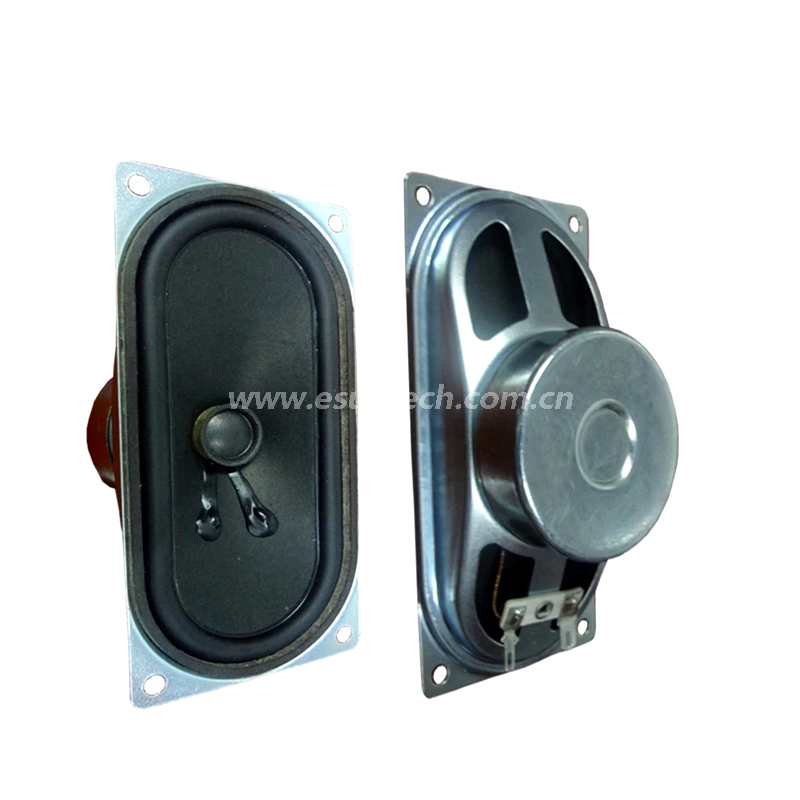

Loudspeaker 58mmx120mm YD612-01-4F40P-R Min Full Range TV speaker laptop speaker Drivers-ESUNTECH

Quantity:
  • YD612-01-4F40P-R
  • EST

Loudspeaker 120*58mm YD612-01-4F40P-R Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd







Model YD612-01-4F40P-R
Dimension: Φ58*120*45H mm
Cone Material: Paper
Edge: Rubber
Nominal Power: 10W
Maximum Power: 12W
Impedance: 4±15%Ω
Voice coil: Φ14.28mm KSV+Cu
Fo: 140±20%Hz
Response: Fo~20KHZ
S.P.L: 81±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ40*19*8 mm /32*18*6mm Y25
Net weight: 170g±8%
