Loudspeaker 60x90mm YD6090-01-8F40CT TV speaker laptop loudspeaker-ESUNTECH

Quantity:
  • YD6090-01-8F40CT
  • EST

Loudspeaker 93mm YD6090-01-8F40CT Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd



2

Model YD6090-01-8F40CT

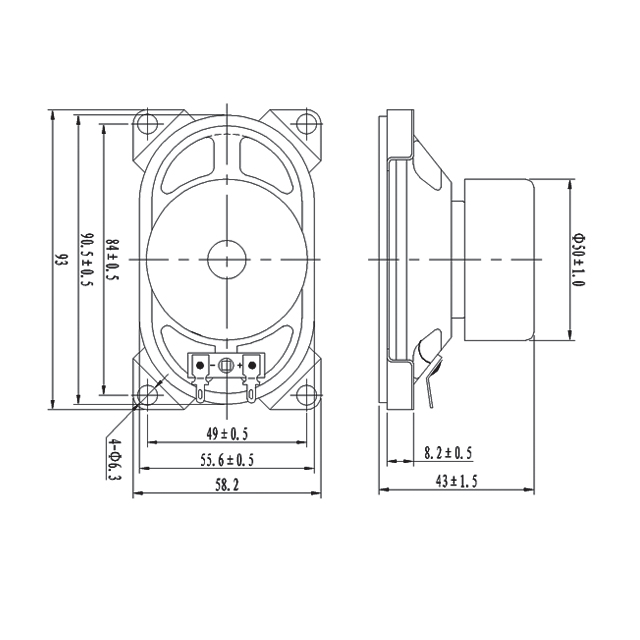

Dimension: 93*58mm
Cone Material: Paper
Edge: Foam/Cloth
Nominal Power: 10W
Maximum Power: 15W
Impedance: 8±15%Ω
Voice coil: Φ13.28mm  KSV+Cu
Fo: 200±20%Hz

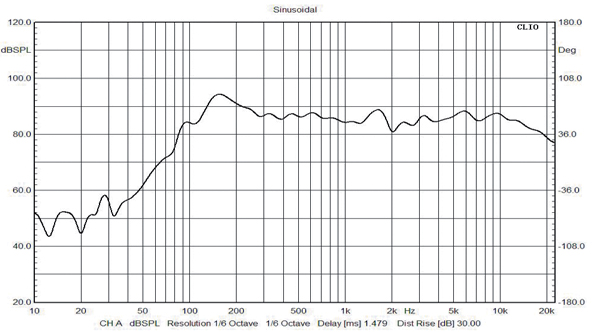

Response: Fo~10KHZ
S.P.L: 88±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ40×19×8(Ferrite)
Φ32×18×6(Ferrite)
Net weight: 167g±8%

3
