Loudspeaker 66mm YD66-45-4F32M-R Min Full Range Waterproof Speaker Drivers-ESUNTECH

Quantity:
  • YD66-45-4F32M-R
  • EST

Loudspeaker 66mm YD66-45-4F32M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd







Model YD66-45-4F32M-R

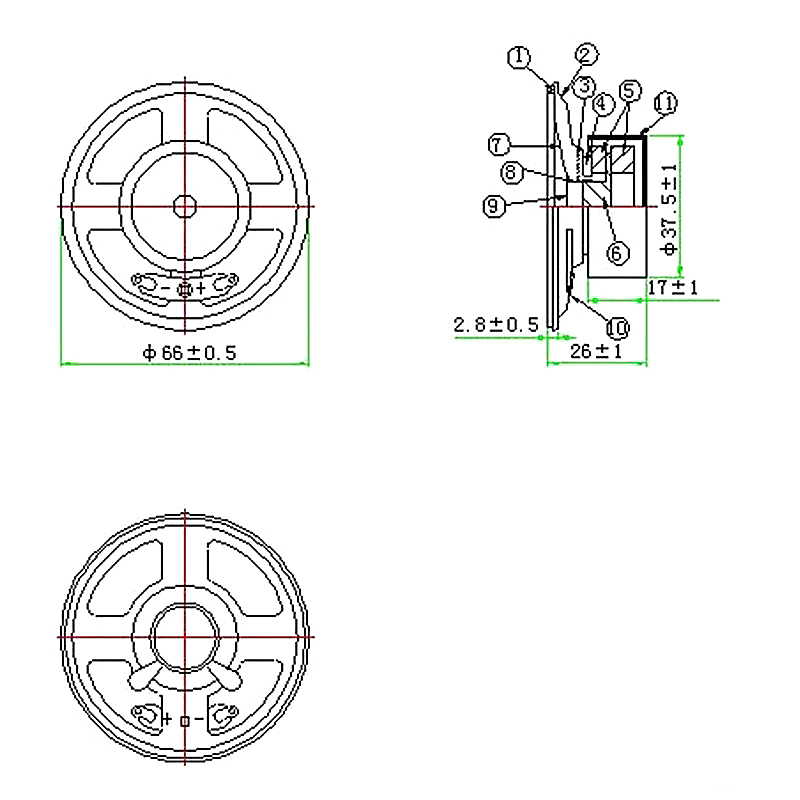

Dimension: 66*26H mm
Cone Material:  PET
Edge:  Paper
Nominal Power: 5W
Maximum Power: 6W
Impedance: 4Ω±15%Ω
Voice coil: 13.28mm KSV+Cu
Fo: 560±20%

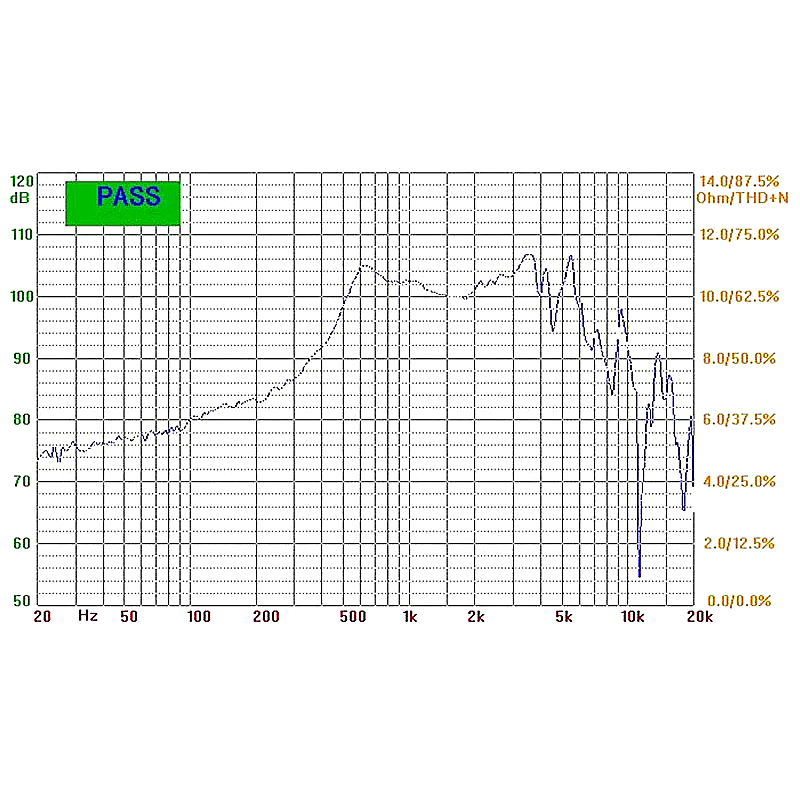

Response: Fo~10KHZ
S.P.L: 102±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ32*18*6+32*18*4mm NdFeB
Net weight: 85g±8%
