Loudspeaker 77mm YD77-41-4F32P-R Min Full Range Equipment Speaker Drivers-ESUNTECH

  • YD77-41-4F32P-R
  • EST
Quantity:

Loudspeaker 77mm YD77-41-4F32P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






Model YD77-41-4F32P-R

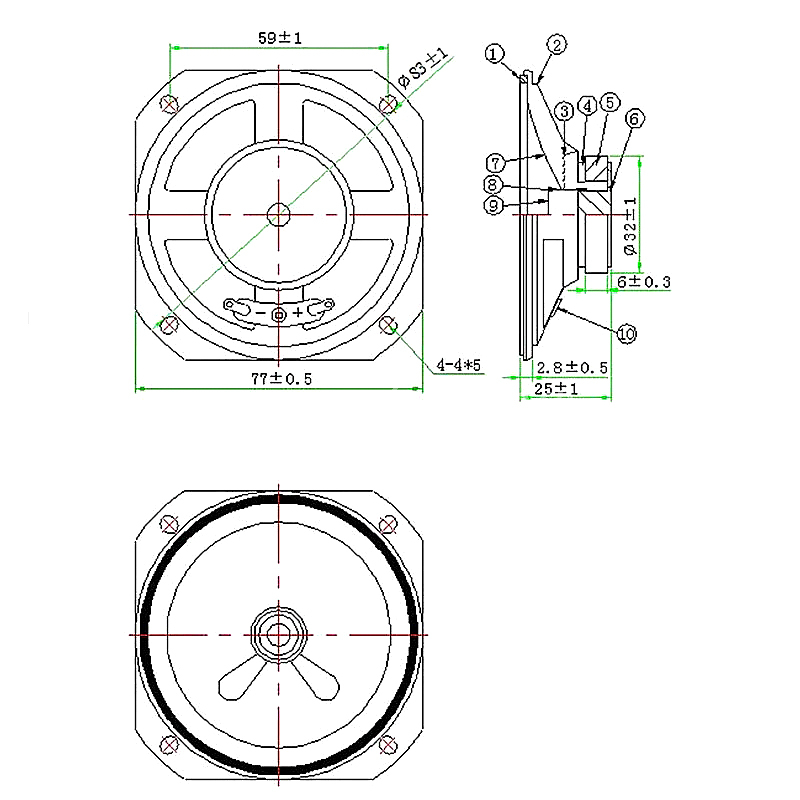

Dimension: 77*77*25H mm
Cone Material: Paper
Edge: Paper
Nominal Power: 3W
Maximum Power: 4W
Impedance: 4Ω±15%Ω
Voice coil: Φ13.28mm PL+Cu
Fo: 280±20%

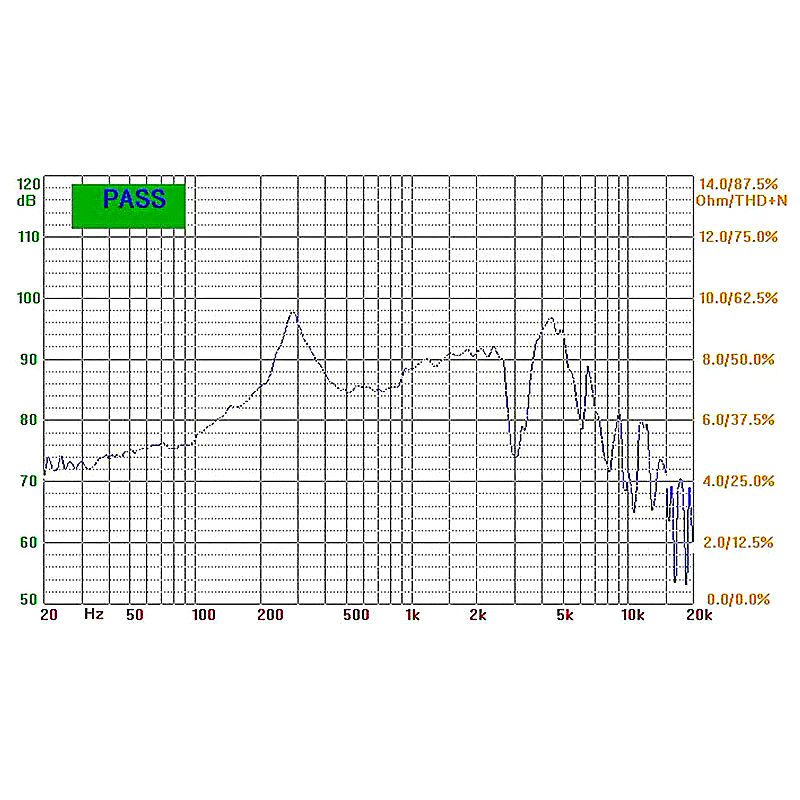

Response: Fo~7KHZ
S.P.L: 87±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ32*18*6mm
Net weight: 57g±8%
