Loudspeaker 78mm YD78-02-8F45P-R Min Full Range Multimedia Speaker Drivers-ESUNTECH

Quantity:
  • YD78-02-8F45P-R
  • EST

Loudspeaker 78mm YD78-02-8F45P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd





Model YD78-02-8F45P-R

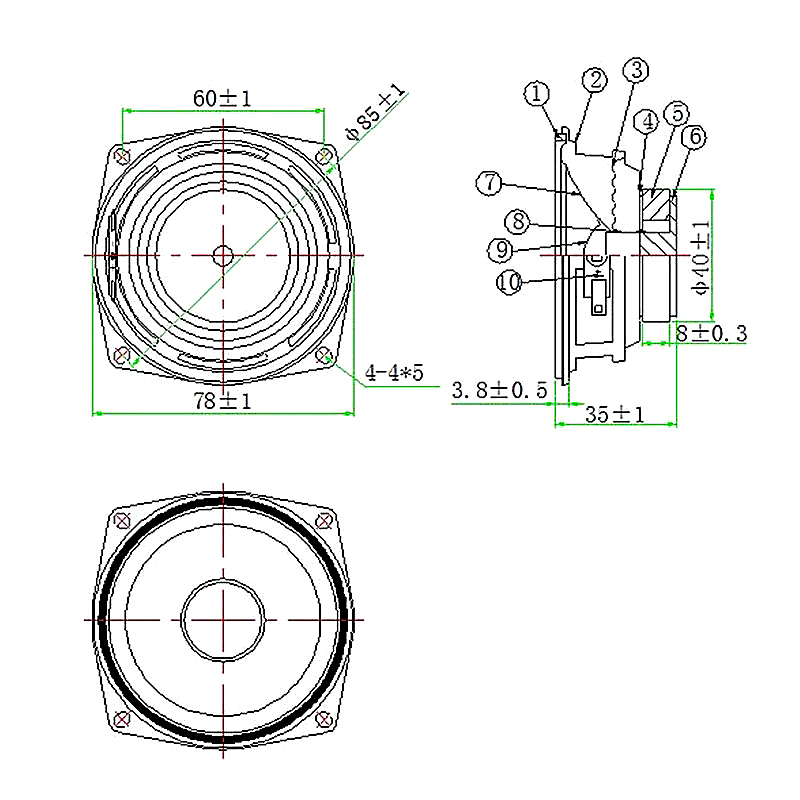

Dimension: Φ78*78*35H mm
Cone Material: Paper
Edge: Foam
Nominal Power: 10W
Maximum Power: 12W
Impedance: 8±15%Ω
Voice coil: Φ13.28mm KSV+Cu
Fo: 180±20%Hz
Response: Fo~20KHZ
S.P.L: 90±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size: Φ45*19*8mm
Net weight: 100g±8%
