Loudspeaker 87mm YD87-12-8F40P-R Min Full Range Equipment Speaker Drivers-ESUNTECH

Quantity:
  • YD87-12-8F40P-R
  • EST

Loudspeaker 87mm YD87-12-8F40P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






Model YD87-12-8F40P-R

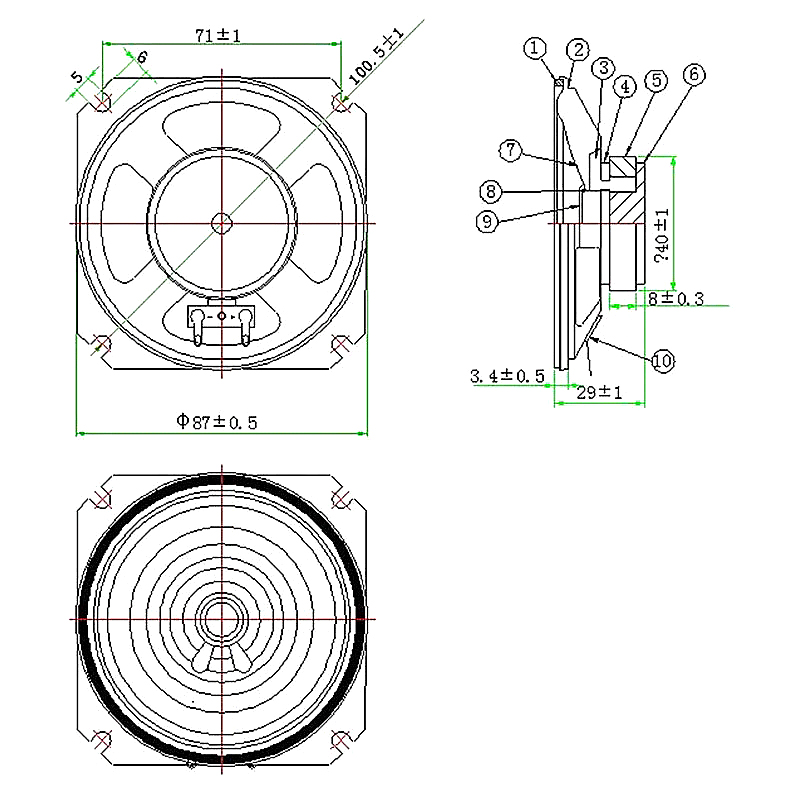

Dimension: 87*87*29H mm
Cone Material: Paper
Edge: Paper
Nominal Power: 2W
Maximum Power: 3W
Impedance: 8Ω±15%Ω
Voice coil: Φ13.28mm PL+Cu
Fo: 220±20%

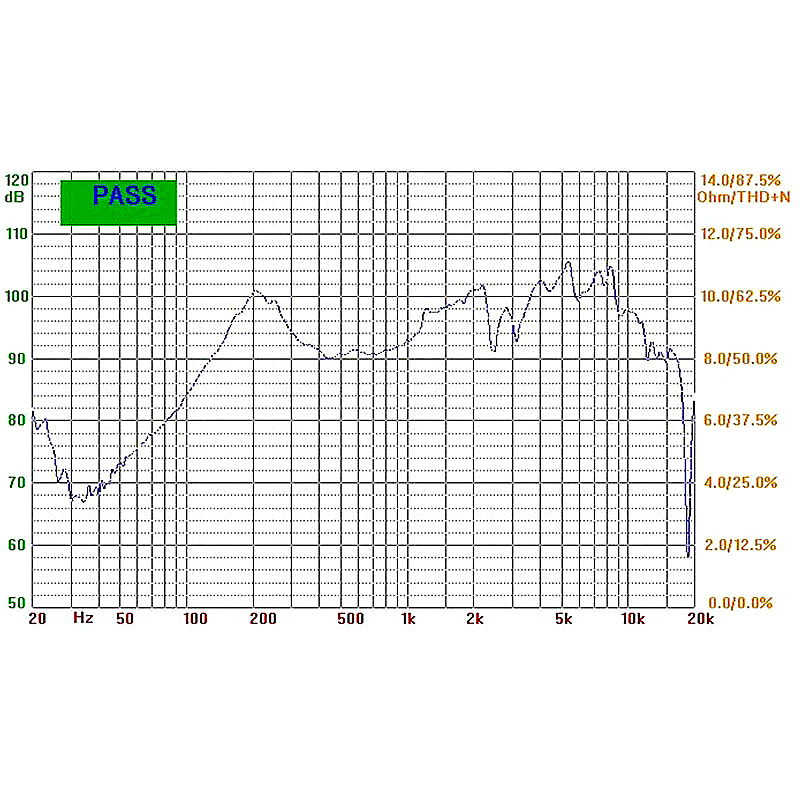

Response: Fo~18KHZ
S.P.L: 92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ40*19*8mm
Net weight: 102g±8%
