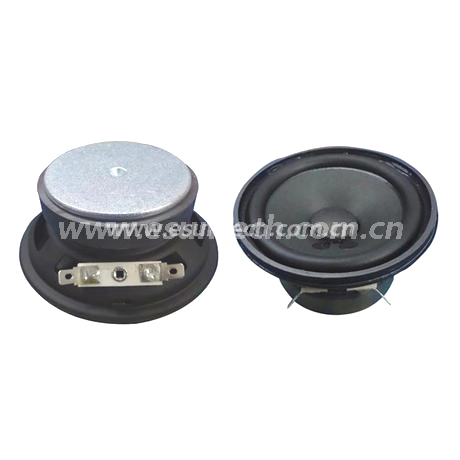

Loudspeaker 87mm YD87-17-8F60P-R Min Full Range Woofer Speaker Drivers-ESUNTECH

Quantity:
  • YD87-17-8F60P-R
  • EST

Loudspeaker 87mm YD87-17-8F60P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd




Model YD87-17-8F60P-R

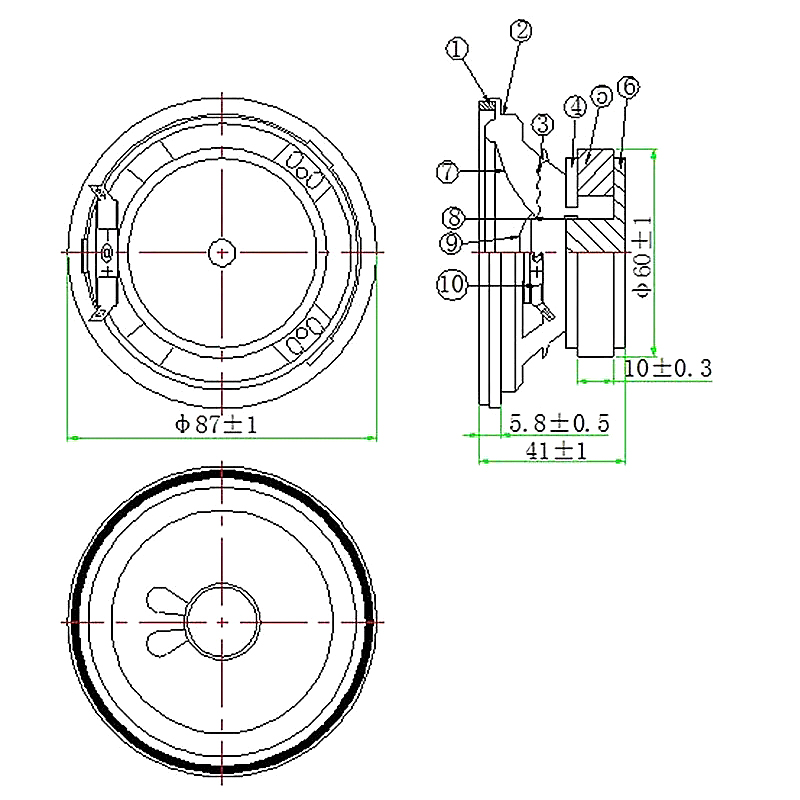

Dimension: Φ87*41H mm
Cone Material:  Paper
Edge: Rubber
Nominal Power: 20W
Maximum Power: 25W
Impedance: 8Ω±15%Ω
Voice coil: Φ19.45 ASV+Cu
Fo: 120±20%

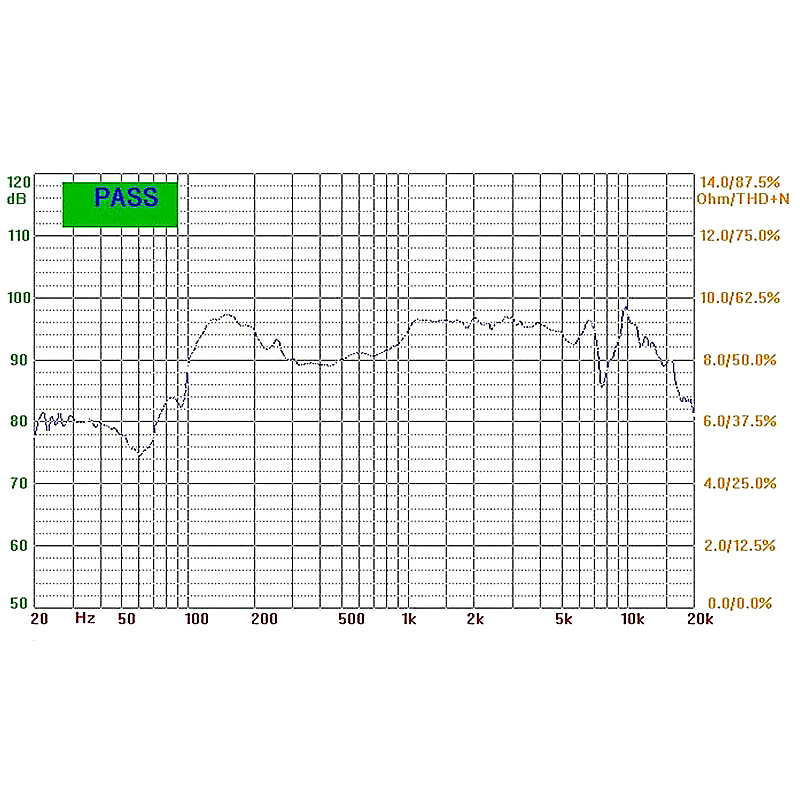

Response: Fo~20KHZ
S.P.L: 94±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ60*32*10mm
Net weight: 255g±8%
