Loudspeaker 90x50mm YD5090-58-8F40M-R water proof speaker laptop speaker Drivers-ESUNTECH

  • YD5090-58-8F40M-R
  • EST
Quantity:

Loudspeaker 50mm YD5090-58-8F40M-R Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd






Model YD5090-58-8F40M-R

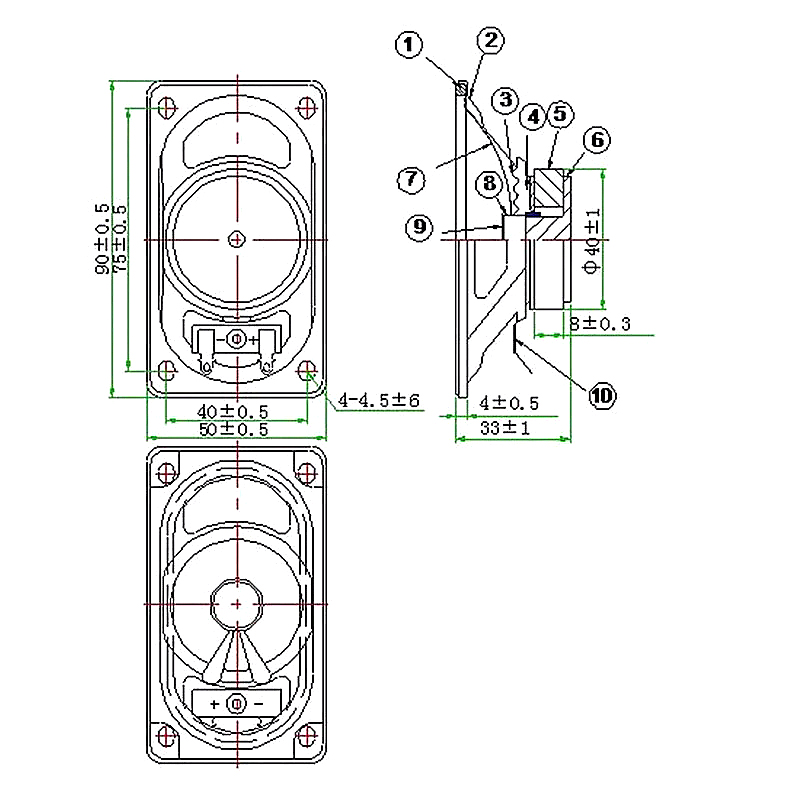

Dimension: 50*90*33H mm
Cone Material: Paper
Edge: PET
Nominal Power: 5W
Maximum Power: 8W
Impedance: 8±15%Ω
Voice coil: Φ13.28mm  KSV+Cu
Fo: 350±20%Hz

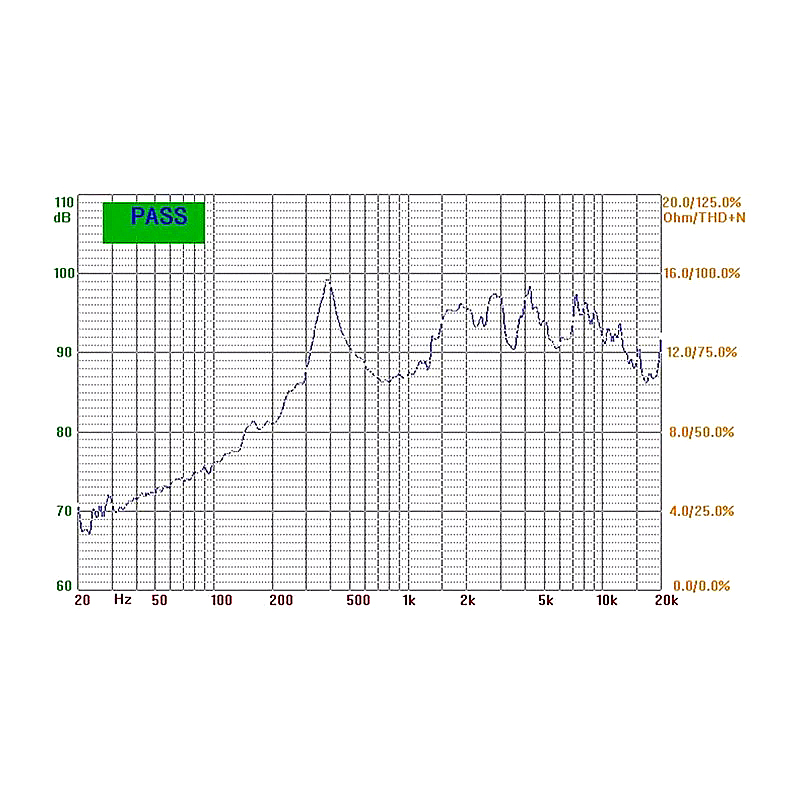

Response: Fo~20KHZ
S.P.L: 84±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size: Φ40*19*8mm
Net weight: 95g±8%
