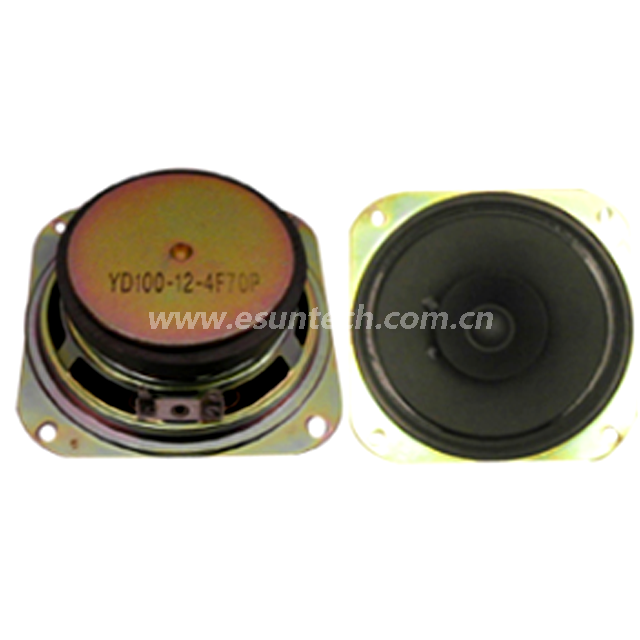

Loudspeaker YD100-12-4F70P 4 Inch YD100 Full Range Surround Sound Audio Speaker Parts Raw Speaker -ESUNTECH

Quantity:
  • YD100-12-4F70P
  • EST

2

                          Model                   YD100-12-4F70P

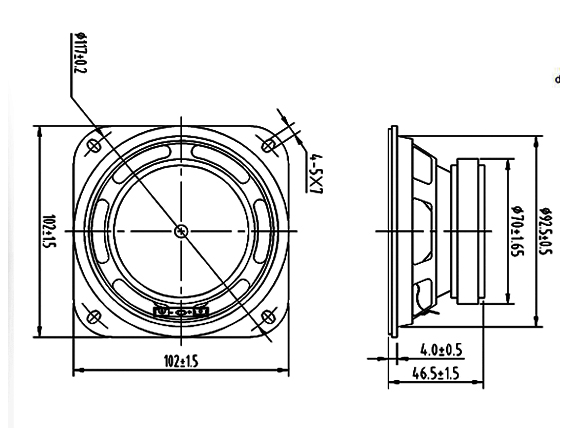

Diameter:

102×102mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

3w

Maximum Power:

5w

Impedance:

4±15%Ω

Voice coil:

Φ13.3mm

Fo:

140±20%Hz

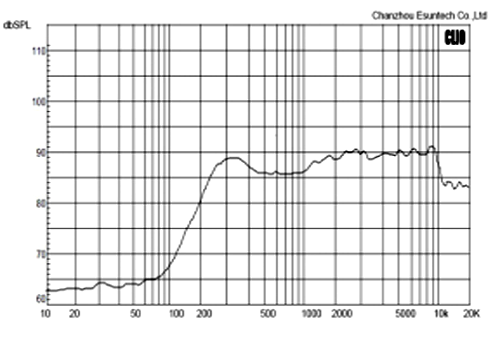

Response:

Fo-8kHz

S.P.L:

93±3dB/1W/0.5M

Magnet Size:

Φ70*19*8(Ferrite)

Net weight:

146g
