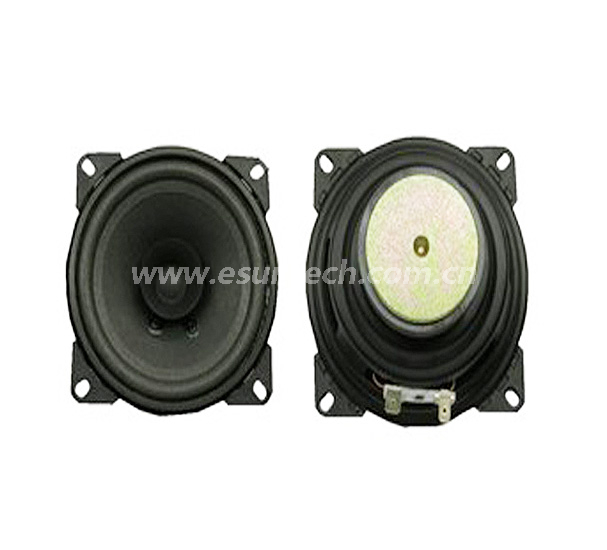

Loudspeaker YD100-14-4F50U 94mm*94mm 3.7" Car Speaker Unit Used for Audio System

  • YD100-14-4F50U
  • EST
  • Square
Quantity:



YD100-14-4F50U-Model


Model YD100-14-4F50U
Diameter:  100x100
Cone Material:  Paper
Edge:  Foam
Nominal Power:  10W
Maximum Power:  15W
Impedance:   4±15%Ω
Fo:  120±20%Hz
Response:  Fo-15kHz
S.P.L:  86±3dB/W/M
Magnet Size:  Φ50×Φ25×10
Net weight:

YD100-14-4F50U(马克波罗4寸)-Q






Company introduction and workshop photos


 Company introduction and workshop photos


Changzhou Esuntech Co.,Ltd. is a commitment to high-quality locates in Jiangsu near Shanghai which is convenient for goods transportation and customer visiting.

Main Poducts:

Buzzer: piezoelectric (piezo) vibration element, piezoelectric buzzer,

magnetic buzzer, SMD buzzer Speaker: piezo tweeter, mylar speaker, loudspeaker, tweeter speaker, TV speaker, car speaker, multimedia speaker, woofer, sub-woofer, waterproof speaker etc Ultrasonic sensor: for car parking system or distance tester.






Company Advantages:



We have excellent engineer (including Korea engineer)and we are focus on product innovation , Management innovation.The quality of product was recognized by customer from all over the world.Our products are sold more than twenty countries and regions around the world.our products are widely recognized  by them.And we have long-team relationship with the client.





Marketing Countries:



USA, Korea, Brazil, Canada, Russia, Turkey, Spain, Germany and so on.



Production Line:


automatic and worker’s lines


automatic and worker’s lines


Inspection and quality control


Inspection and quality control


Warehouse & Delivery


Warehouse & Delivery




Speakers


A Speaker or Loudspeaker typically offers a wider and flatter frequency response than a piezo, or electro-magnetic buzzer, which is why it is more suitable for applications requiring sound reproduction of music or voice.


Wherever you look today, you will find voice or music quality sound required for user interface, or simply user pleasure at operating many kinds of devices. Today, the largest growth in the loudspeaker industry has been in the area of cell phones and a variety of hand held devices for listening to music, viewing video and a whole variety of utility applications. That is why Esuntech has developed a very large assortment of miniature speakers in every conceivable configuration. In the midsize range Vehicle Telematics, Hands-Free Systems and Park Assist Systems have required dedicated speakers, so that the system can operate independently from the vehicles installed audio system. Larger loudspeaker market growth has been driven mostly by tremendous developments in superior home entertainment systems.


Since the audible spectrum can range from 12Hz to 20 KHz, it is difficult for only one speaker size to capture the entire range. To produce very low frequencies a very large speaker is required, while a miniature speaker can produce higher frequencies with fidelity. This is why high end audio systems often use a multitude of speakers of different sizes in order to capture most accurately the sound being produced, without generating “noise,” or unwanted sound. Esuntech offers a large range of speaker types, from large Sub-Woofers, to very small miniature speakers and lately has introduced a range of surface mount speakers. Surface mount speakers are useful when the electronic assembly process must be entirely automated.


To obtain the best acoustic results, it is generally recommended to get as much loudspeaker as your system budget will allow, whether it is in consideration of available space, power, or money. Please browse our on line selection and for additional models see our Esuntech Standard Speaker, Automotive and Micro-Speaker Catalogs on our web. Please contact Esuntech directly if you require specific application assistance and recommendations of use for a loudspeaker, surface mount speaker or a miniature speaker.


Speaker classification introduction


As a single speaker is incapable to provide the whole range of audio frequency so the loudspeaker consists of different driver units which are as follow –


1) Tweeter (for High-frequency range)

2) Mid-range driver (for Middle-frequency range)

3) Woofers (for Low-frequency range)


Types of speaker


The speakers can be classified in many different ways. On the basis of amplification, they can be classified as follow –


1) Passive Speaker

2) Active Speaker


Passive Speaker – The passive speaker does not have built-in power amplifier. So they need to connect to an external power amplifier for high power output. Most speakers that are commercially available are passive type due to their small size.


Active Speaker – This type of speaker has inbuilt power amplifier for high and low frequency. So they are also called as Powered Speakers. But they are bulky as compared to the passive one so they are less used commonly.





Speaker structure


Speaker structure1


Speaker structure2





NO

零件Component

1

压边 Gasket

2

盆架 Frame

3

音圈 Voice coil

4

弹波 Damper

5

华司Washer

6

磁铁 Magnet

7

T铁 T-yoke

8

鼓纸 Cone

9

帽子 Dust cap

10

接线板 Terminals

11

磁罩Shielding cover




Packaging style


Packaging style




FAQ


1.Can you provide samples?


Of course, we can provide 2 free samples, and the sample delivery time is 7-10 days.


2. I would like to know procurement lead time


Please contact us when you need the latest lead time information because it will be changed depend on the market condition.



3. What about the Minimum Order Quantity?


Please confirm with the sales before placing the order. If there are raw materials in stock, 1,000 pieces of a single variety are acceptable.


4.Can customize,modify and develop products according to the design drawing?


Yes,we provide OEM service and can customize products according to the drawing.


5.What about terms of payment?


Payment terms: T/T, west Union.
