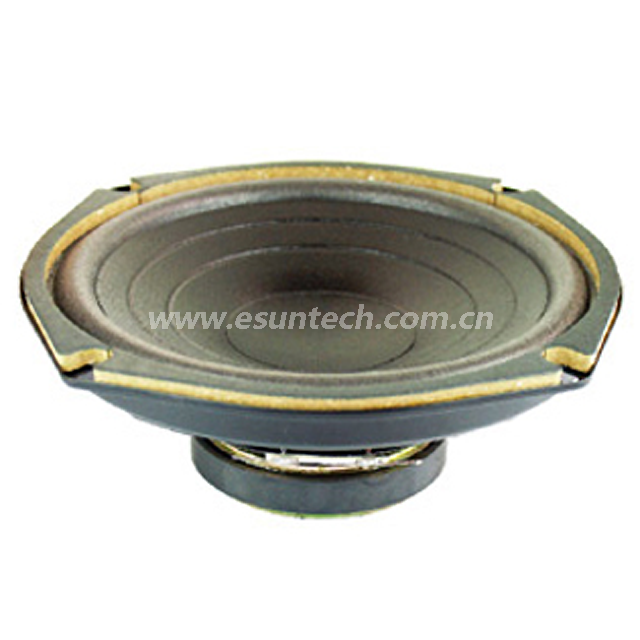

Loudspeaker YD158-01-8F70U 6 Inch High Quality Bass Speaker Driver Woofer Manufacturer -ESUTECH

  • YD158-01-8F70U

  • EST

2

                            Model                  YD158-01-8F70U

Diameter:

Φ158mm

Cone Material:

Paper

Edge:

Foam

Nominal Power:

15w

Maximum Power:

30w

Impedance:

8±15%Ω

Voice coil:

Φ19.45mm

Fo:

95±20%Hz

Response:

Fo-5kHz

S.P.L:

92±3dB/1W/0.5M

Magnet Size:

Φ70×32×10(Ferrite)

Net weight:

432g
