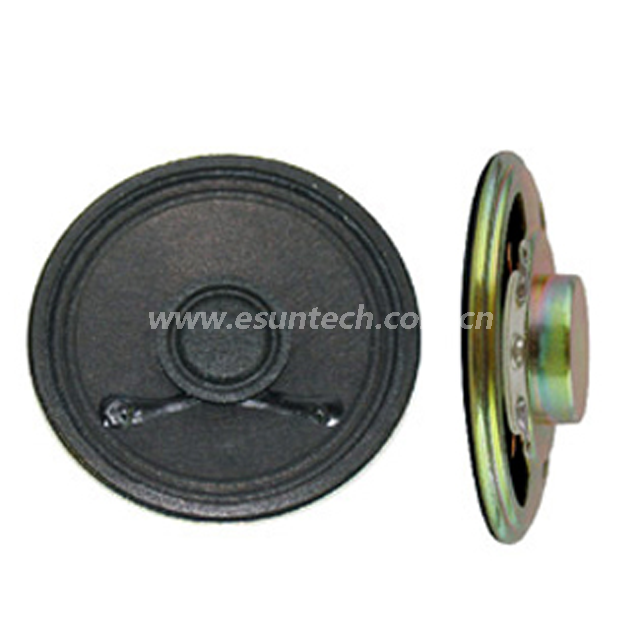

Loudspeaker YD50-02-N12.5P 50mm 2 Inch 19mm cover Mid Range Super Loud Intercom Speaker Unit-ESUNTECH

Quantity:

2

Loudspeaker 50mm  YD50-02-N12.5P 50mm 2 Inch 19mm magnet cover Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd

                           Model                  YD50-02-N12.5P

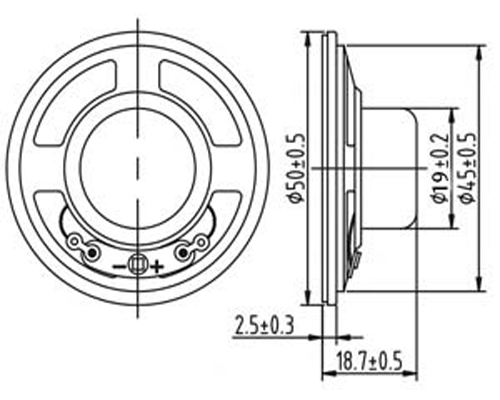

Diameter:

50mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

0.25w

Maximum Power:

0.5w

Impedance:

R±15%Ω

Voice coil:

Φ13.3mm

Fo:

500±20%Hz

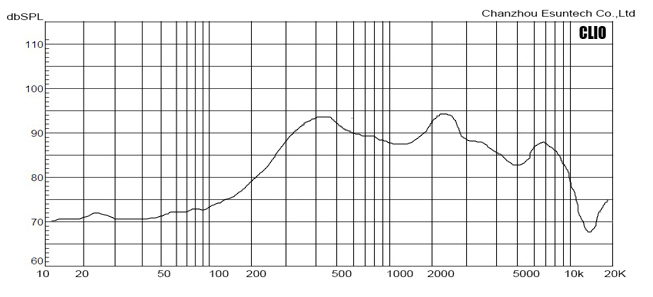

Response:

Fo-4kHz

S.P.L:

83±3dB/W/M

Magnet Size:

Φ12.5×3(NdFeB)

Net weight:

25g
